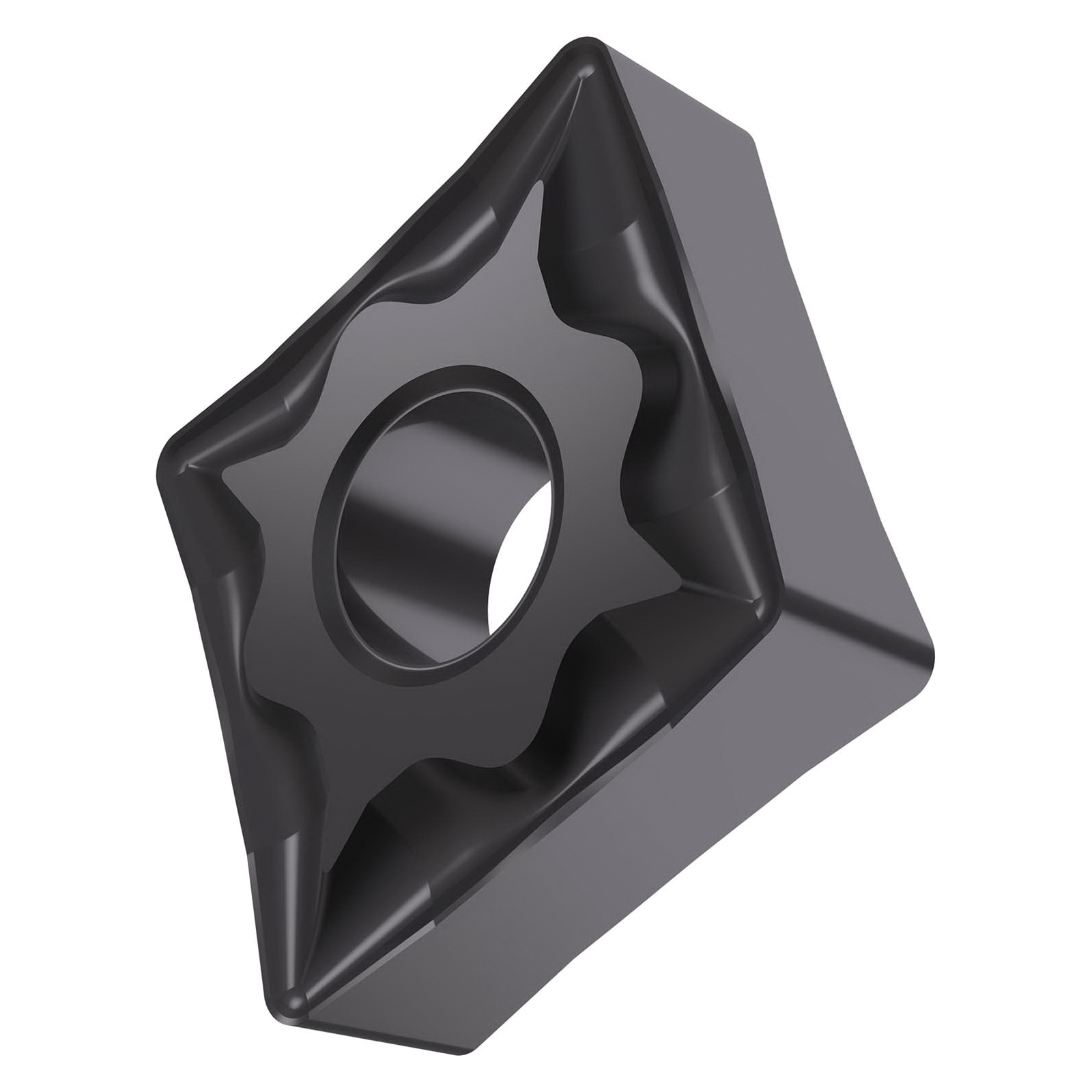

CNMG 321-NF:T6310 TURNING INSERT - NEGATIVE
CNMG 321-NF:T6310 TURNING INSERT - NEGATIVE
PRA6922831
6922831
6.69
/ EA
http://schema.org/OutOfStock
/Product/PRA6922831
- Applicable Materials: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys
- Chipbreaker: NF
- Corner Radius: 0.4mm
- Hole Diameter: 3.81mm
- Included Angle: 80°
- Inscribed Circle: 9.525mm
- Insert Size: 321
- Insert Style: CNMG
- ISO Code: CNMG 090304E-NF:T6310
- Material: Carbide
- Material Grade: H, K, M, N, P, S
- Maximum Depth of Cut Decimal Inch: 0.118
- Maximum Depth of Cut Metric: 3.0
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 9
- Shape: Diamond
- Surface Treatment: PVD-TiAlN+AlTiSiN Coated
- Thickness: 3.18mm
- Type: 9.7mm
- ANSI Code: CNMG 321-NF:T6310
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T6310
- Manufacturer Name: Dormer Pramet
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 9.525mm, 3.18mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range M01-M15, for fine to medium machining of stainless-steels
- Item Features
- Standards
- T6310 grade high reliability due to special new sintering process
- High wear resistance (new substrate with high strength and hardness)
- PVD coating using triple coating technology, multilayer TiAlN + top layer AlTiSiN with high hardness
- High strength and reliability of the insert during continuous cut
- Excellent durability of the inserts for higher cutting speeds
- Resistance to heat related cracks
