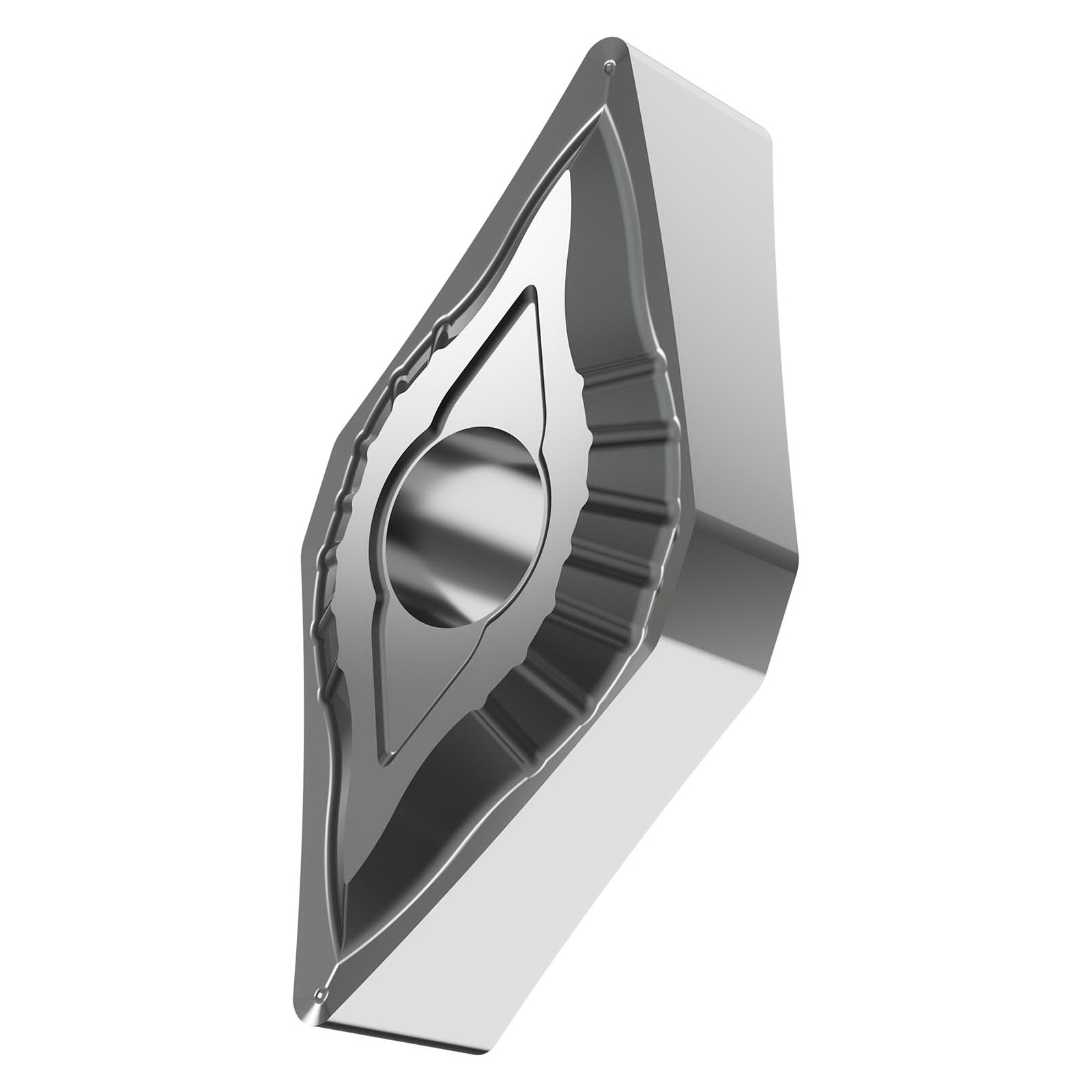

DNMG 441-SF:H07 TURNING INSERT - NEGATIVE
DNMG 441-SF:H07 TURNING INSERT - NEGATIVE
PRA6921014
6921014
11.51
/ EA
http://schema.org/OutOfStock
/Product/PRA6921014
- Applicable Materials: Aluminum, Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: SF
- Corner Radius: 0.4mm
- Hole Diameter: 5.16mm
- Included Angle: 55°
- Inscribed Circle: 12.7mm
- Insert Size: 441
- Insert Style: DNMG
- ISO Code: DNMG 150604E-SF H07
- Material: Carbide
- Material Grade: K, M, N, P, S
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 15
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 5.16mm
- Type: 15.5mm
- ANSI Code: DNMG 441-SF H07
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: H07
- Manufacturer Name: Dormer Pramet
Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7mm, 6.35mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SF with rounded cutting edges, in grade H07, an uncoated WC-Co carbide within ISO range S01-S20, for fine to medium machining of super-alloys
- Application
- Item Features
- Standards
Finishing Applications
- H07 grade special uncoated material for turning titanium and its alloys
- High abrasion resistance
- Resistance to pitting on the cutting face when machining titanium and its alloys
- Resistance to plastic deformation
- Also suitable for the machining of non-ferrous metals and cast iron
- H type fine grain material (without cubic carbides) with low cobalt bonding phase content
- Special grade for machining titanium alloys
- Small to medium cross sections of chip
- Suitable for continuous to slightly interrupted cut
