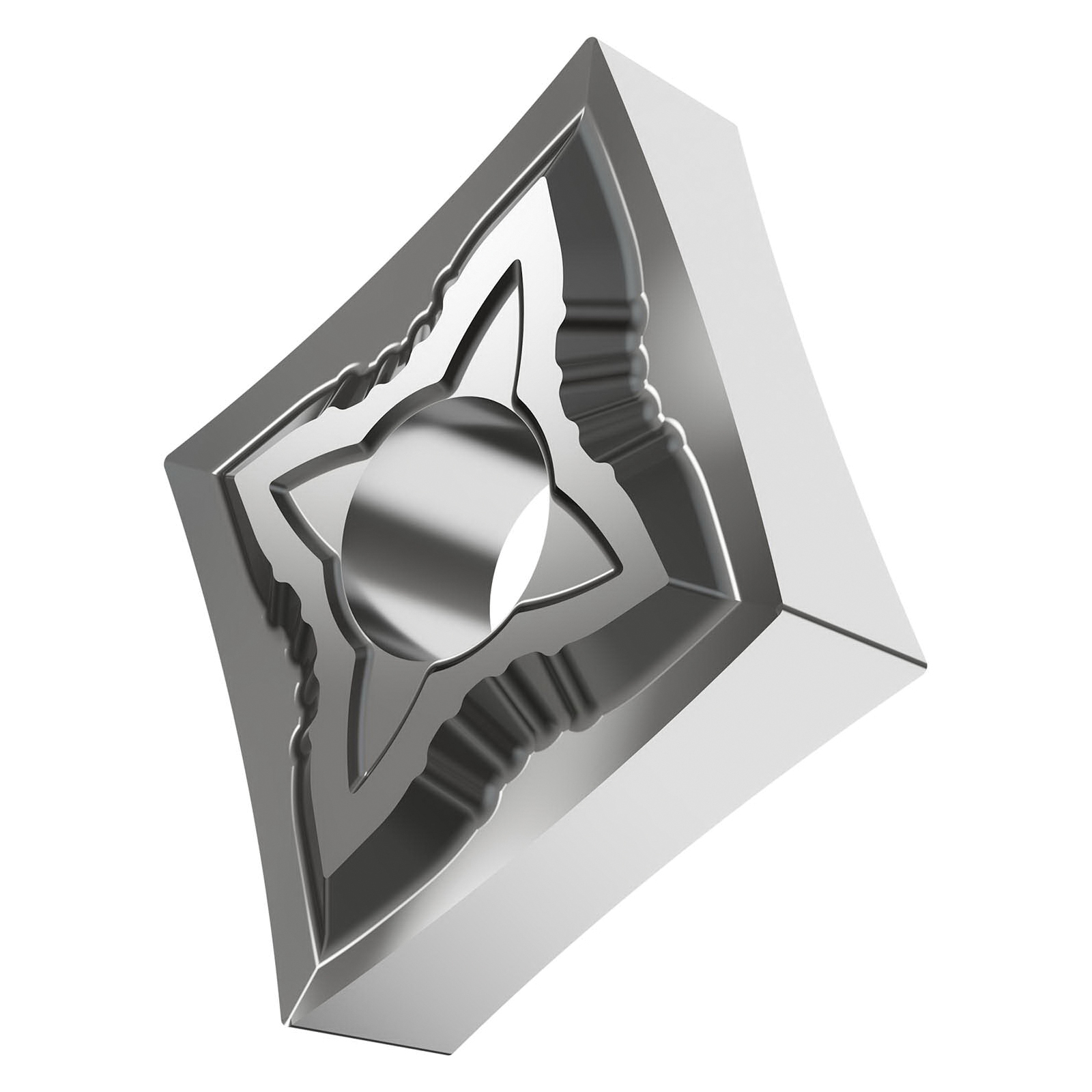

CNGG 430.5-SF:H07 TURNING INSERT - NEGATIVE
CNGG 430.5-SF:H07 TURNING INSERT - NEGATIVE
PRA6921011
6921011
11.43
/ EA
http://schema.org/OutOfStock
/Product/PRA6921011
- Applicable Materials: Aluminum, Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: SF
- Corner Radius: 0.2mm
- Hole Diameter: 5.16mm
- Included Angle: 80°
- Inscribed Circle: 12.7mm
- Insert Size: 430.5
- Insert Style: CNGG
- ISO Code: CNGG 120402E-SF:H07
- Material: Carbide
- Material Grade: K, M, N, P, S
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 4.76in
- Type: 12.9mm
- ANSI Code: CNGG 430.5-SF:H07
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: H07
- Manufacturer Name: Dormer Pramet
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF with rounded cutting edges, in grade H07, an uncoated WC-Co carbide within ISO range S01-S20, for fine to medium machining of super-alloys
- Application
- Item Features
- Standards
Finishing Applications
- H07 grade special uncoated material for turning titanium and its alloys
- Fine grain substrate with low cobalt content
- High abrasion resistance
- Resistance to pitting on the cutting face when machining titanium and its alloys
- Resistance to plastic deformation
- Also suitable for the machining of non-ferrous metals and cast iron
