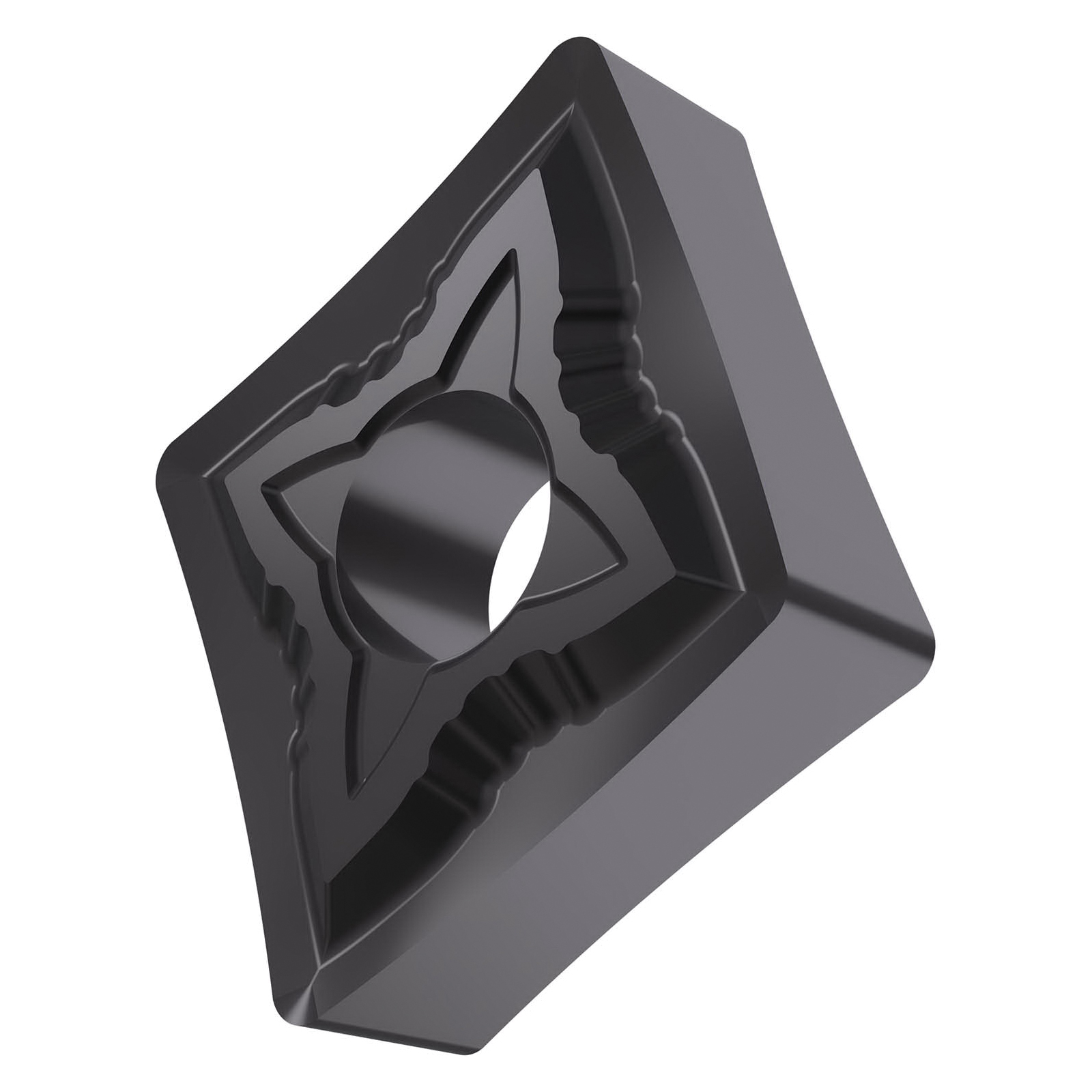

CNMG 431-SF:T6310 TURNING INSERT - NEGATIVE
CNMG 431-SF:T6310 TURNING INSERT - NEGATIVE
PRA6919751
6919751
10.14
/ EA
http://schema.org/OutOfStock
/Product/PRA6919751
- Applicable Materials: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys
- Chipbreaker: SF
- Corner Radius: 0.4mm
- Hole Diameter: 5.16mm
- Included Angle: 80°
- Inscribed Circle: 12.7mm
- Insert Size: 431
- Insert Style: CNMG
- ISO Code: CNMG 120404E-SF:T6310
- Material: Carbide
- Material Grade: H, K, M, N, P, S
- Maximum Depth of Cut Decimal Inch: 0.106
- Maximum Depth of Cut Metric: 2.7
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: PVD-TiAlN+AlTiSiN Coated
- Thickness: 4.76mm
- Type: 12.9mm
- ANSI Code: CNMG 431-SF:T6310
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T6310
- Manufacturer Name: Dormer Pramet
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SF with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01-M15 and S01-S15, for fine to medium machining of stainless-steels and super-alloys
- Application
- Item Features
- Standards
Finishing Applications
- T6310 grade high reliability due to special new sintering process
- High wear resistance (new substrate with high strength and hardness)
- PVD coating using triple coating technology, multilayer TiAlN + top layer AlTiSiN with high hardness
- High strength and reliability of the insert during continuous cut
- Excellent durability of the inserts for higher cutting speeds
- Resistance to heat related cracks
