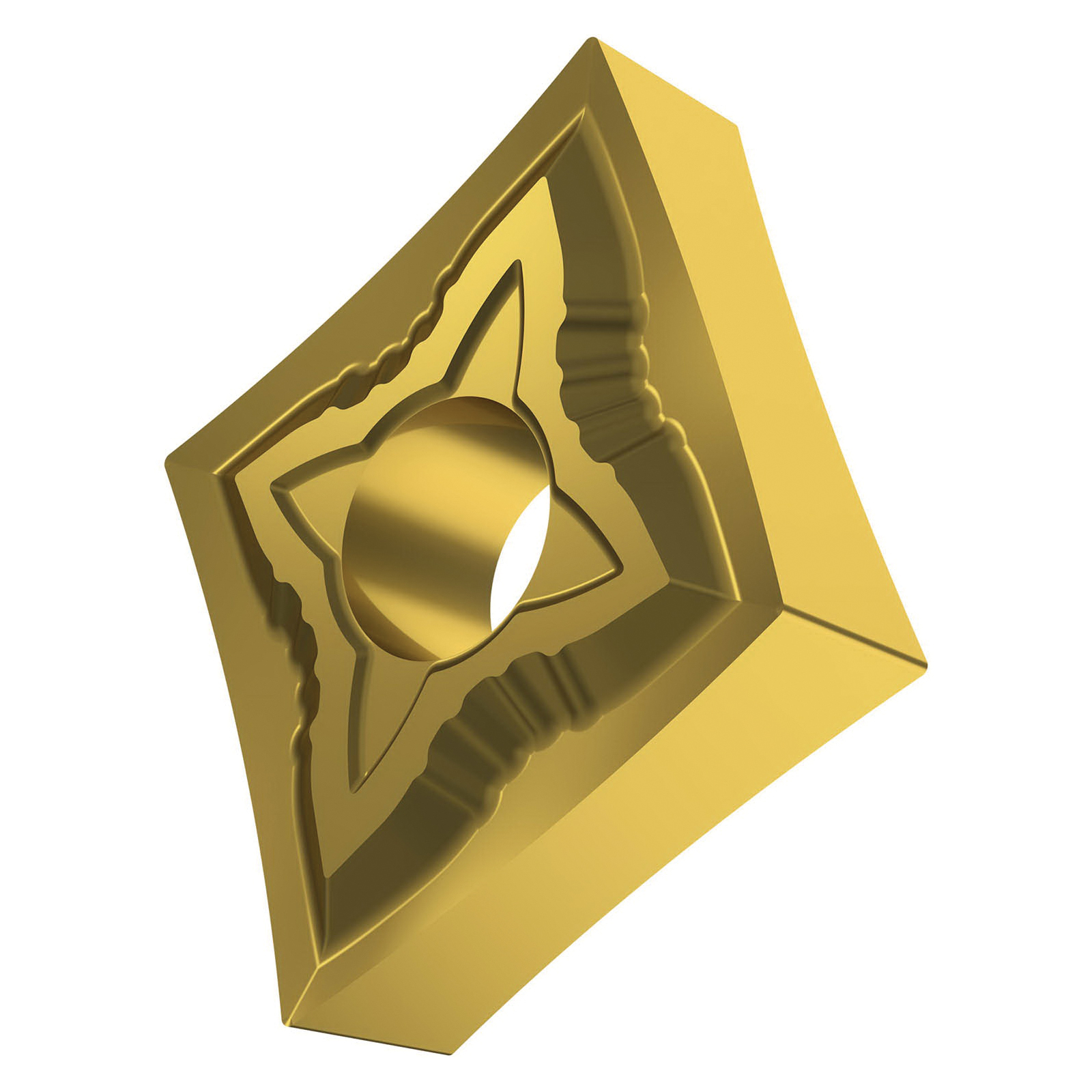

CNGG 430.5-SF:T8315 TURNING INSERT - NEGATIVE
CNGG 430.5-SF:T8315 TURNING INSERT - NEGATIVE
PRA6919708
6919708
15.67
/ EA
http://schema.org/OutOfStock
/Product/PRA6919708
- Applicable Materials: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: SF
- Corner Radius: 0.2mm
- Hole Diameter: 5.16mm
- Included Angle: 80°
- Inscribed Circle: 12.7mm
- Insert Size: 430.5
- Insert Style: CNGG
- ISO Code: CNGG 120402E-SF:T8315
- Material: Carbide
- Material Grade: H, K, M, N, P, S
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: PVD Coated
- Thickness: 4.76in
- Type: 12.9mm
- ANSI Code: CNGG 430.5-SF:T8315
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T8315
- Manufacturer Name: Dormer Pramet
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF with rounded cutting edges, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range M05-M20, for fine to medium machining of stainless-steels
- Application
- Item Features
- Standards
Finishing Applications
- T8315 grade highly abrasion resistant material of the T8300 series with guaranteed strength
- Sub-micron substrate with a relatively low cobalt content
- Nano-layered PVD coating with gradient transitions
- Lower internal coating tension with higher hardness
- Lower notch wear on the main cutting edge
- Higher cutting speeds
- Medium chip cross sections
- Stable machining conditions
