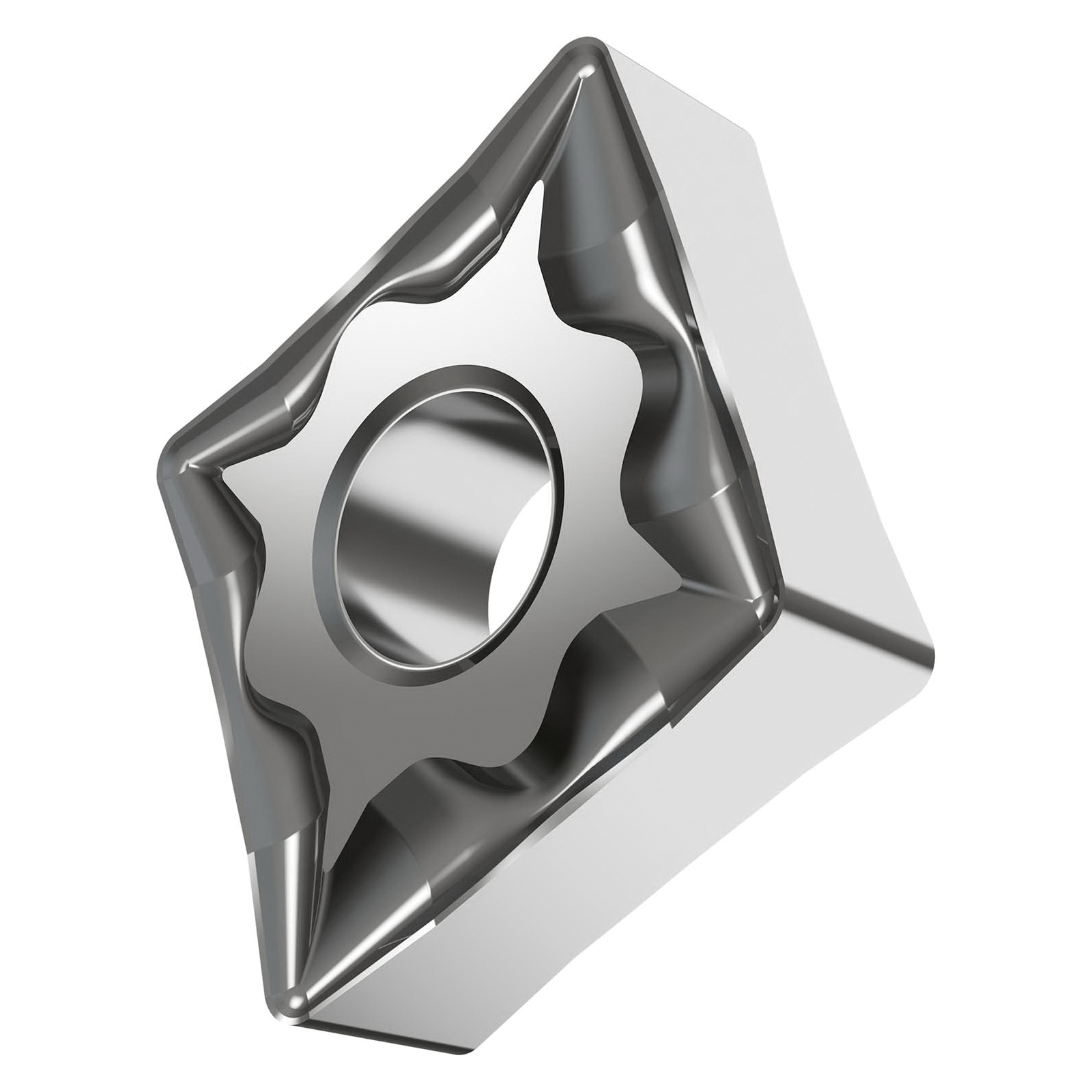

CNMG 431-NF:HF7 TURNING INSERT - NEGATIVE
CNMG 431-NF:HF7 TURNING INSERT - NEGATIVE
PRA6834647
6834647
7.62
/ EA
http://schema.org/OutOfStock
/Product/PRA6834647
- Applicable Materials: Hardened Steel, Cast Iron, Stainless Steel, Aluminum and Titanium/Super Alloys
- Chipbreaker: NF
- Corner Radius: 0.4mm
- Hole Diameter: 5.16mm
- Included Angle: 80°
- Inscribed Circle: 12.7mm
- Insert Size: 431
- Insert Style: CNMG
- ISO Code: CNMG 120404E-NF:HF7
- Material: Carbide
- Material Grade: H, K, M, N, S
- Maximum Depth of Cut Decimal Inch: 0.118
- Maximum Depth of Cut Metric: 3.0
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: PCD Coated
- Thickness: 4.76mm
- Type: 12.9mm
- ANSI Code: CNMG 431-NF:HF7
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: HF7
- Manufacturer Name: Dormer Pramet
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF with rounded cutting edges, in grade HF7, an uncoated fine grained WC-Co carbide, for fine to medium machining
- Item Features
- Standards
- HF7 grade sub-micron material without cubic carbides (type H) and with a low cobalt content
- Very versatile in terms of machined materials
- Small to medium chip cross sections
- Suited to stable machining conditions
