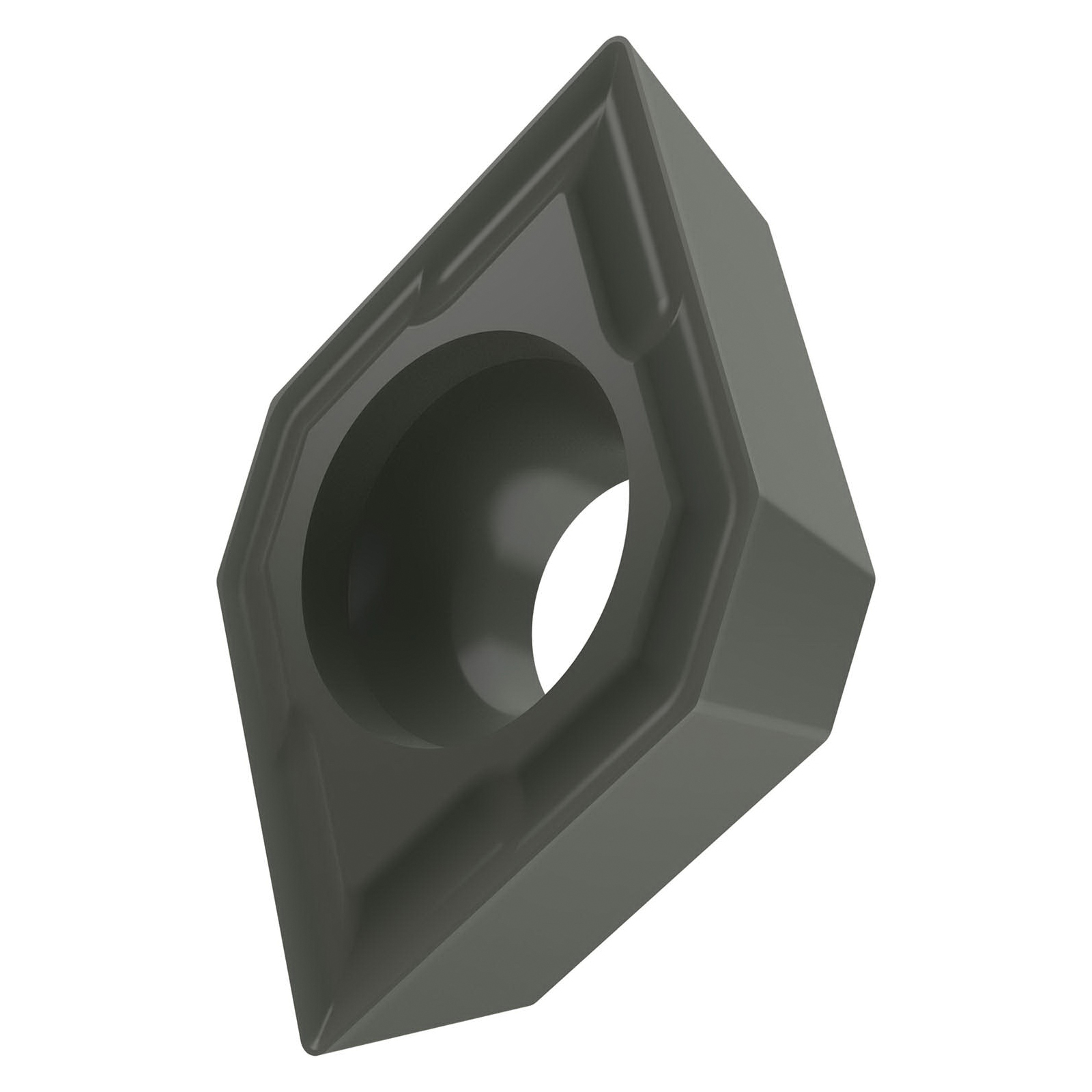

EPMT 1.81.50.5-NF2:TT010 TURNING INSERT - POSITIVE
EPMT 1.81.50.5-NF2:TT010 TURNING INSERT - POSITIVE
PRA6756302
6756302
6.22
/ EA
http://schema.org/OutOfStock
/Product/PRA6756302
- Applicable Materials: Stainless Steel and Steel
- Chipbreaker: NF2
- Corner Radius: 0.2mm
- Hole Diameter: 2.5mm
- Included Angle: 75°
- Inscribed Circle: 5.56mm
- Insert Size: 1.81.50.5
- Insert Style: EPMT
- ISO Code: EPMT 050202E-NF2 TT010
- Material: Carbide
- Material Grade: M, P
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 5
- Shape: Diamond
- Surface Treatment: Cermet Coated
- Thickness: 2.38mm
- Type: 5.7mm
- ANSI Code: EPMT 1.81.50.5-NF2 TT010
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TT010
Single-sided positive turning insert, 75 deg rhomboid with 11 deg clearance, inscribed circle diameter of 5.56 mm, 2.38 mm THK, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF2 with rounded cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels.
- Application
- Standards
Semi-Finishing and Light Roughing
