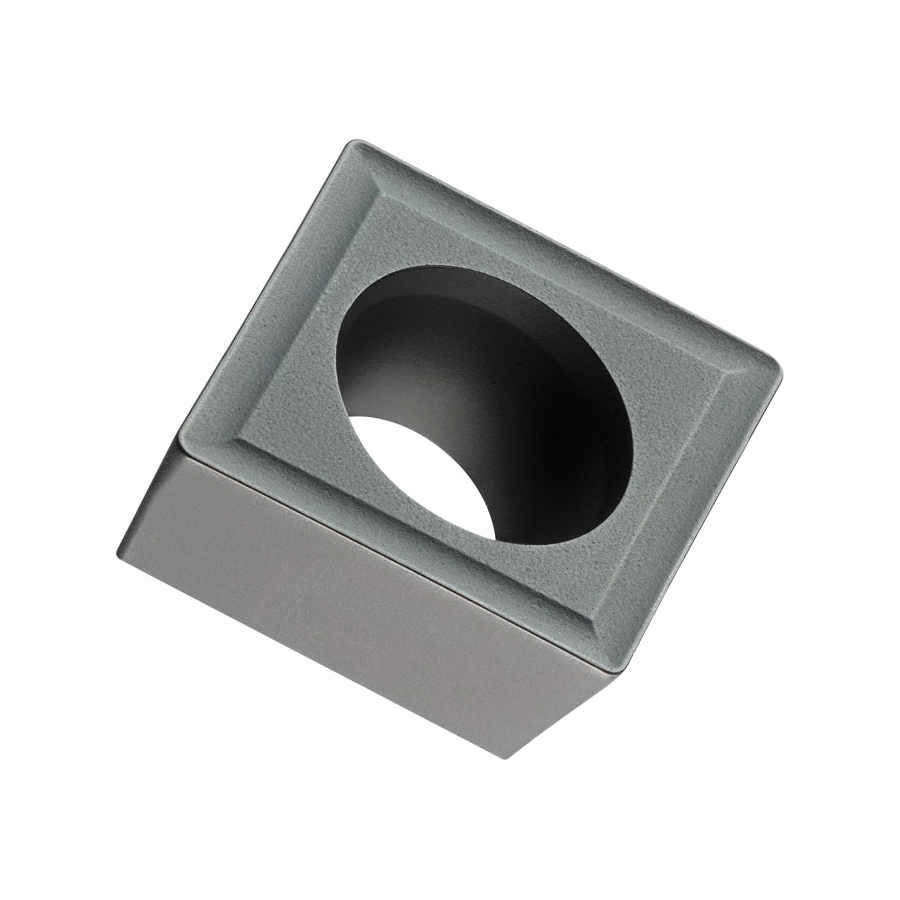

CCMT 21.51-RF:T5315 TURNING INSERT - POSITIVE
CCMT 21.51-RF:T5315 TURNING INSERT - POSITIVE
PRA6756024
6756024
70.56
/ PK (10)
http://schema.org/OutOfStock
/Product/PRA6756024
- Applicable Materials: Hardened Steel, Stainless Steel and Steel
- Chipbreaker: RF
- Corner Radius: 0.4mm
- Hole Diameter: 2.9mm
- Included Angle: 80°
- Inscribed Circle: 6.35mm
- Insert Size: 21.51
- Insert Style: CCMT
- ISO Code: CCMT 060204E-RF:T5315
- Material: Carbide
- Material Grade: H, M, P
- Maximum Depth of Cut Decimal Inch: 0.118
- Maximum Depth of Cut Metric: 3.0
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 6
- Shape: Diamond
- Surface Treatment: CVD Coated
- Thickness: 2.38mm
- Type: 6.4mm
- ANSI Code: CCMT 21.51-RF:T5315
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T5315
- Manufacturer Name: Dormer Pramet
Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to heavy machining of cast-irons
- Application
- Item Features
- Standards
Finishing to Semi-Roughing Turning Applications
- T5315 grade fine grained substrate with a modified cobalt content to increase strength
- Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
- Special finish for coating
- Versatile material designed primarily for turning gray and ductile cast iron
- Medium to high cutting speeds
- Suitable for continuous and interrupted cut
