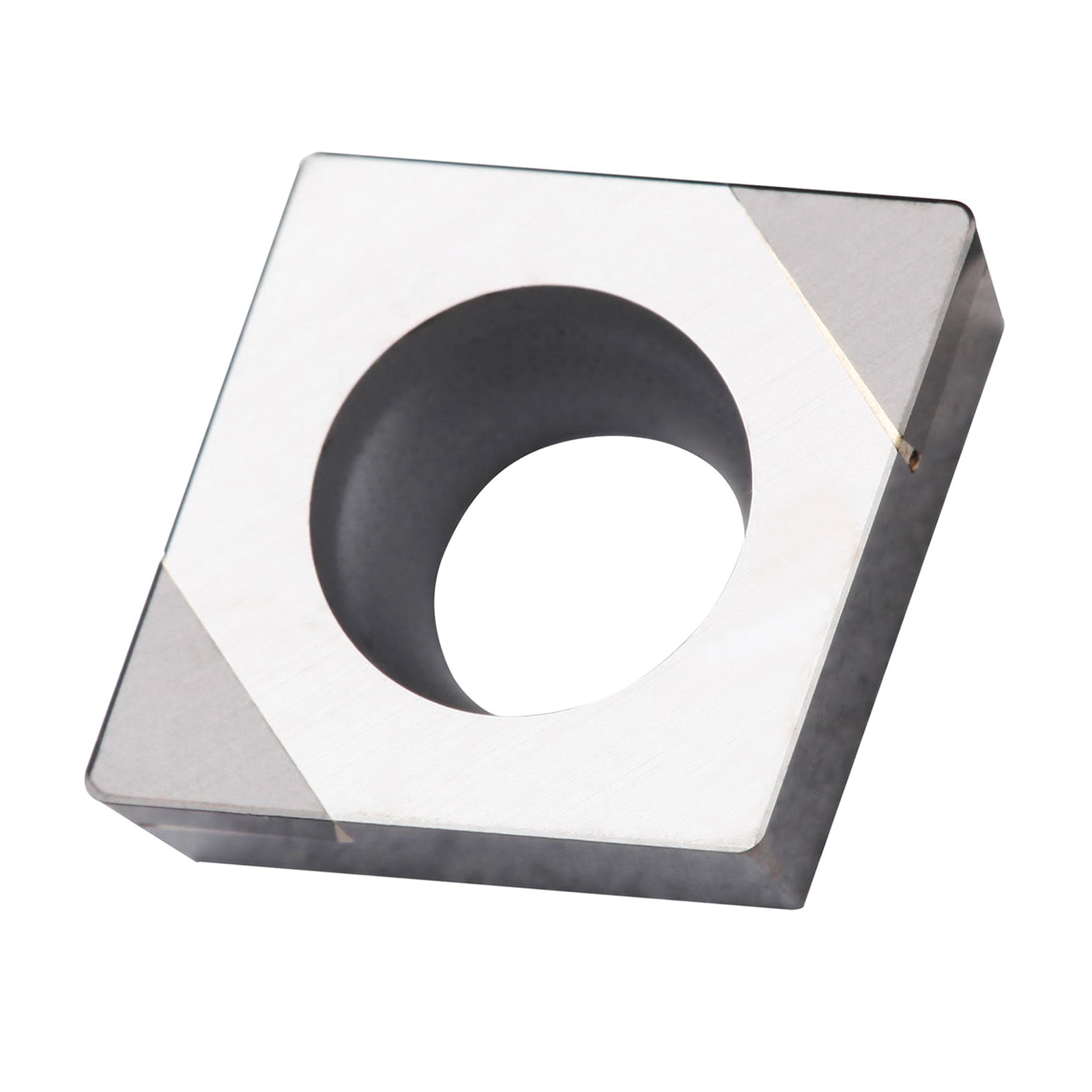

CCGW 21.51E:TB310 TURNING INSERT CBN
CCGW 21.51E:TB310 TURNING INSERT CBN
PRA6755919
6755919
73.76
/ EA
http://schema.org/OutOfStock
/Product/PRA6755919
- Applicable Materials: Hardened Steel and Titanium/Super Alloys
- Chipbreaker: B
- Corner Radius: 1/64in
- Hole Diameter: 0.114in
- Included Angle: 80°
- Inscribed Circle: 1/4in
- Insert Size: 21.51
- Insert Style: CCGW
- ISO Code: CCGW 060204E-B:TB310
- Material: Carbide
- Material Grade: H, S
- Maximum Depth of Cut Decimal Inch: 0.106
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 6
- Shape: Diamond
- Surface Treatment: CBN Coated
- Thickness: 3/32in
- Type: 0.256in
- ANSI Code: CCGW 21.51E:TB310
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TB310
- Manufacturer Name: Dormer Pramet
- Application
- Item Features
- Standards
Finishing Applications
- TB310 grade polycrystalline cubic boron nitride
- Material suitable for machining hardened steel
- Excellent wear resistance
- Finishing work with high strength steel, also suitable for slightly interrupted cut
- Stable machining conditions
