KNUX 160410SR-73:T5315 TURNING INSERT - NEGATIVE
KNUX 160410SR-73:T5315 TURNING INSERT - NEGATIVE
PRA6755764
6755764
13.33
/ EA
http://schema.org/OutOfStock
/Product/PRA6755764
- Applicable Materials: Hardened Steel, Cast Iron, Stainless Steel and Steel
- Chipbreaker: 73
- Corner Radius: 1mm
- Included Angle: 55°
- Inscribed Circle: 9.525mm
- Insert Size: 160410
- Insert Style: KNUX
- ISO Code: KNUX 160410SR-73 T5315
- Material: Carbide
- Material Grade: H, K, M, P
- Maximum Depth of Cut Decimal Inch: 0.189
- Maximum Depth of Cut Metric: 4.8
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 16
- Shape: Parallelogram
- Surface Treatment: CVD Coated
- Thickness: 4.76mm
- Type: 19.5mm
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T5315

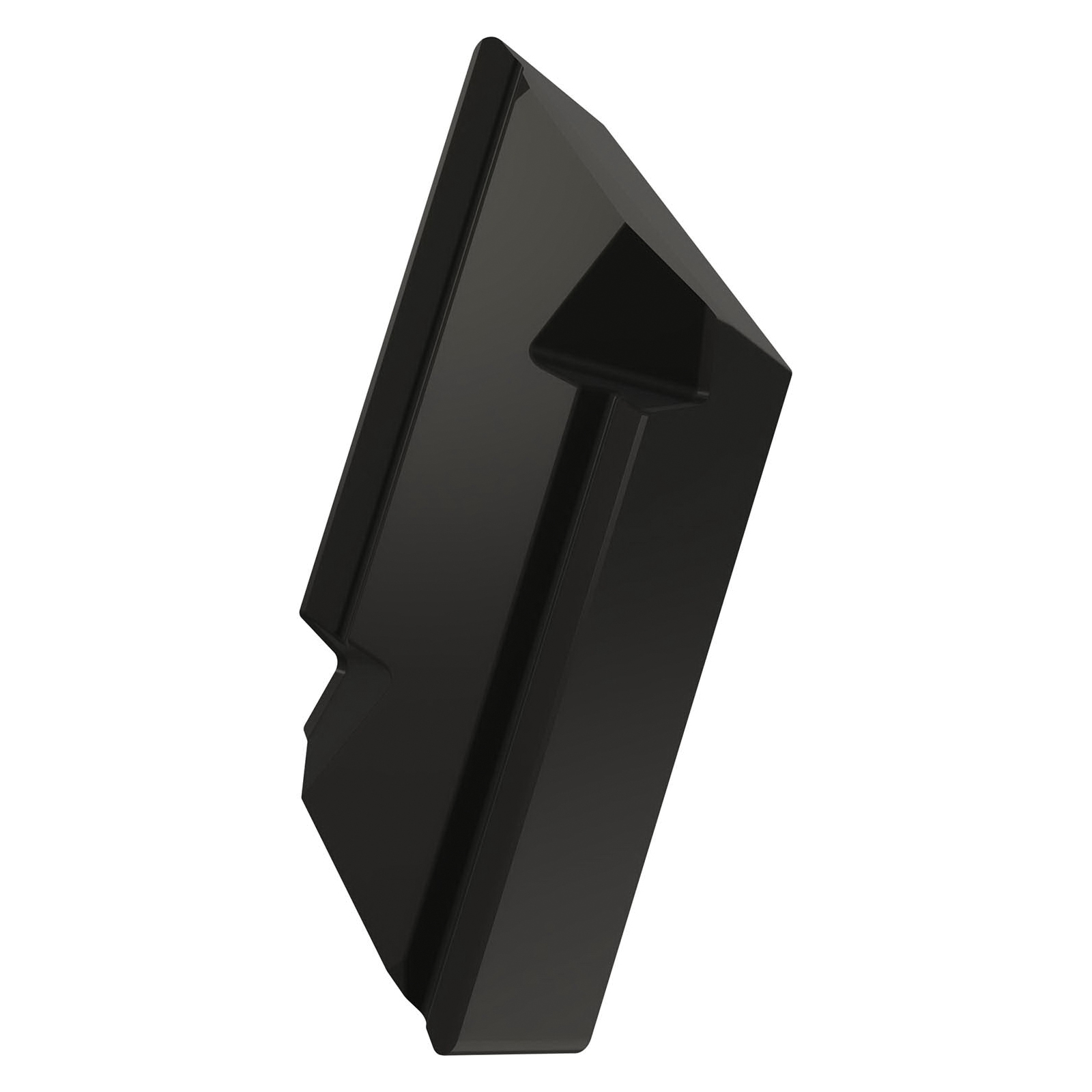

Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 1mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 73 with rounded cutting edges with facet, in grade T5315, a MT-CVD coated WC-Co carbide, for medium to heavy machining with a right handed turning tool
- Application
- Item Features
- Standards
Finishing and Roughing
- T5315 grade fine grained substrate with a modified cobalt content to increase strength
- Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
- Special finish for coating
- Versatile material designed primarily for turning gray and ductile cast iron
- Medium to high cutting speeds
- Suitable for continuous and interrupted cut
