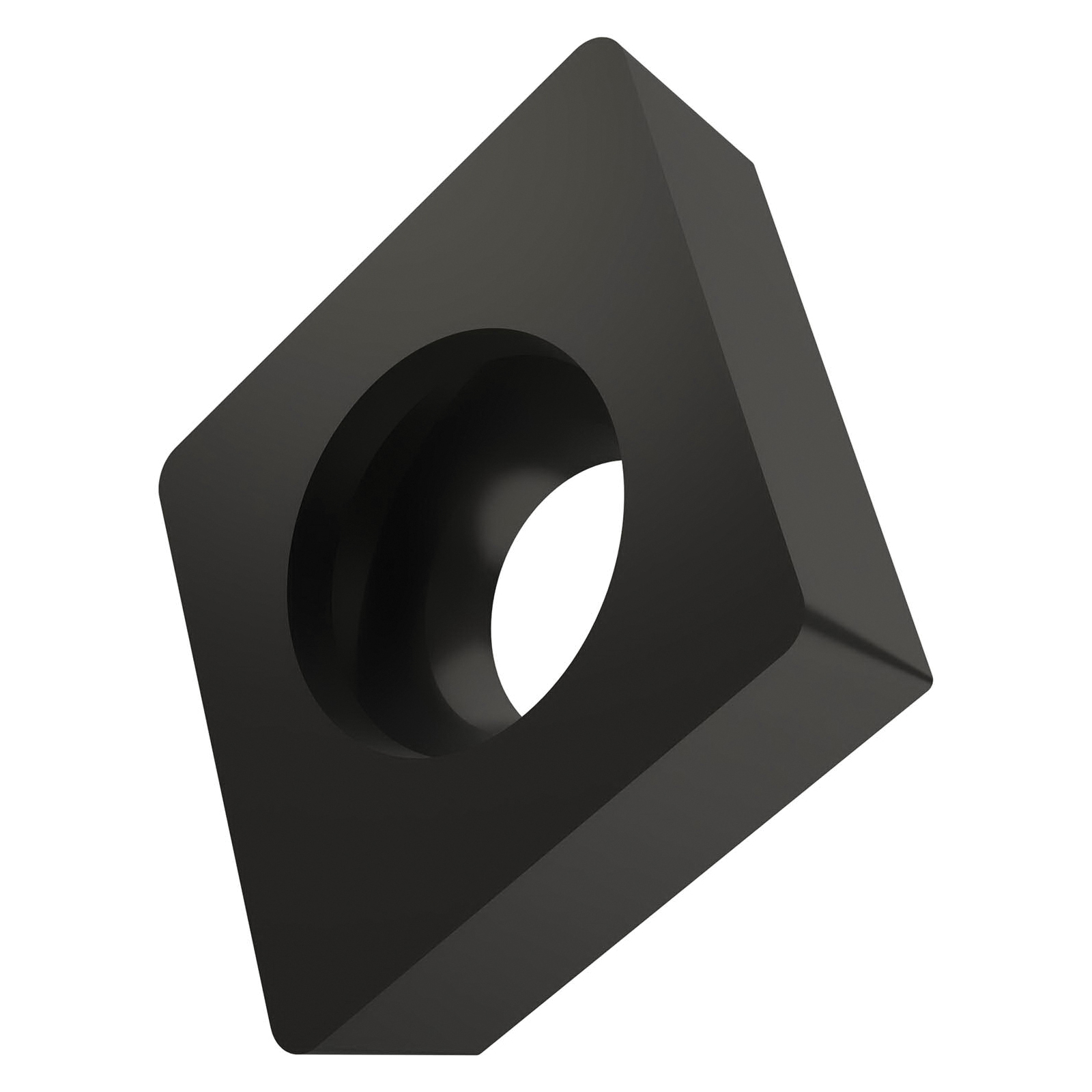

CCMW 21.50.5:T5305 TURNING INSERT - POSITIVE
CCMW 21.50.5:T5305 TURNING INSERT - POSITIVE
PRA6755718
6755718
74.66
/ PK (10)
http://schema.org/OutOfStock
/Product/PRA6755718
- Applicable Materials: Cast Iron, Hardened Steel and Steel
- Corner Radius: 0.2mm
- Hole Diameter: 2.8mm
- Included Angle: 80°
- Inscribed Circle: 6.35mm
- Insert Size: 21.50.5
- Insert Style: CCMW
- ISO Code: CCMW 060202:T5305
- Material: Carbide
- Material Grade: H, K, P
- Maximum Depth of Cut Decimal Inch: 0.165
- Maximum Depth of Cut Metric: 4.2
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 6
- Shape: Diamond
- Surface Treatment: CVD-Al2O3 Coated
- Thickness: 2.38mm
- Type: 6.4mm
- ANSI Code: CCMW 21.50.5:T5305
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T5305
- Manufacturer Name: Dormer Pramet
Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.2mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01-K15, for fine machining of cast-irons
- Application
- Item Features
- Standards
Fine Finishing and Semi-Roughing
- T5305 grade fine grained substrate with a low cobalt content
- Thick layer of MT-CVD coating with a layer of Al2O3 on the surface
- Special finish for coating
- Top performance for machining gray cast iron
- Material with the highest abrasion resistance of the 5300 series
- High cutting speeds
- Continuous and slightly interrupted cut
