DNMG 331-NM:T7335 TURNING INSERT - NEGATIVE
DNMG 331-NM:T7335 TURNING INSERT - NEGATIVE
PRA6754779
6754779
11.89
/ EA
http://schema.org/OutOfStock
/Product/PRA6754779
- Applicable Materials: Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: NM
- Corner Radius: 1/64in
- Hole Diameter: 0.15in
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: 331
- Insert Style: DNMG
- ISO Code: DNMG 110404E-NM T7335
- Material: Carbide
- Material Grade: M, P, S
- Maximum Depth of Cut Decimal Inch: 0.118
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 11
- Shape: Diamond
- Surface Treatment: CVD Coated
- Thickness: 3/16in
- Type: 0.457in
- ANSI Code: DNMG 331-NM T7335
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T7335
- Manufacturer Name: Dormer Pramet

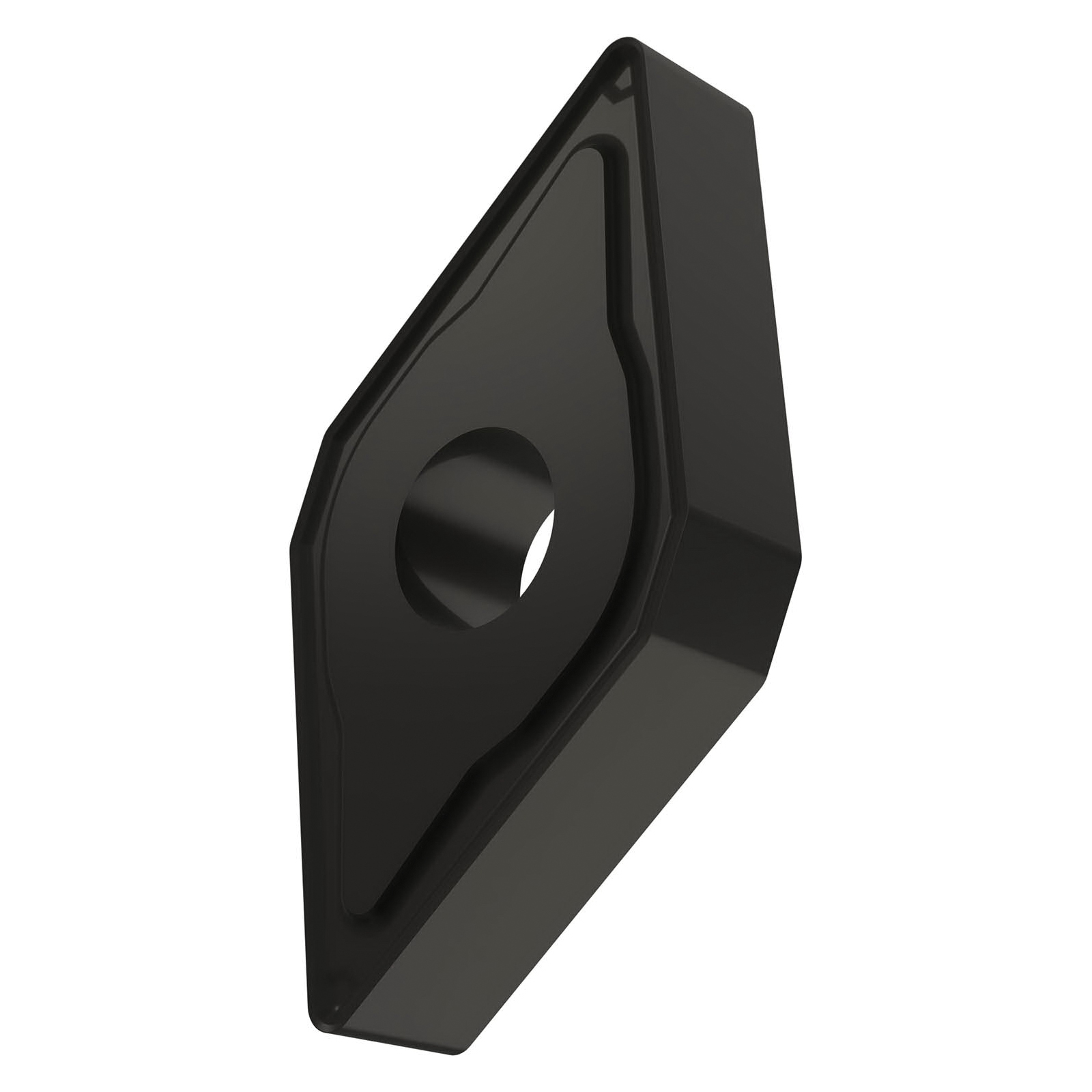

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NM with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for fine to heavy machining of stainless-steels
- Application
- Item Features
- Standards
Fine Finishing Applications
- T7335 grade functionally gradient substrate with medium grain size
- Relatively high cobalt content
- Relatively thin coating applied with the MT-CVD method
- Material shows very high strength
- Special surface finish for coating
- Medium cutting speeds
- Continuous and heavily interrupted cut
- Also withstands very unfavorable machining conditions
