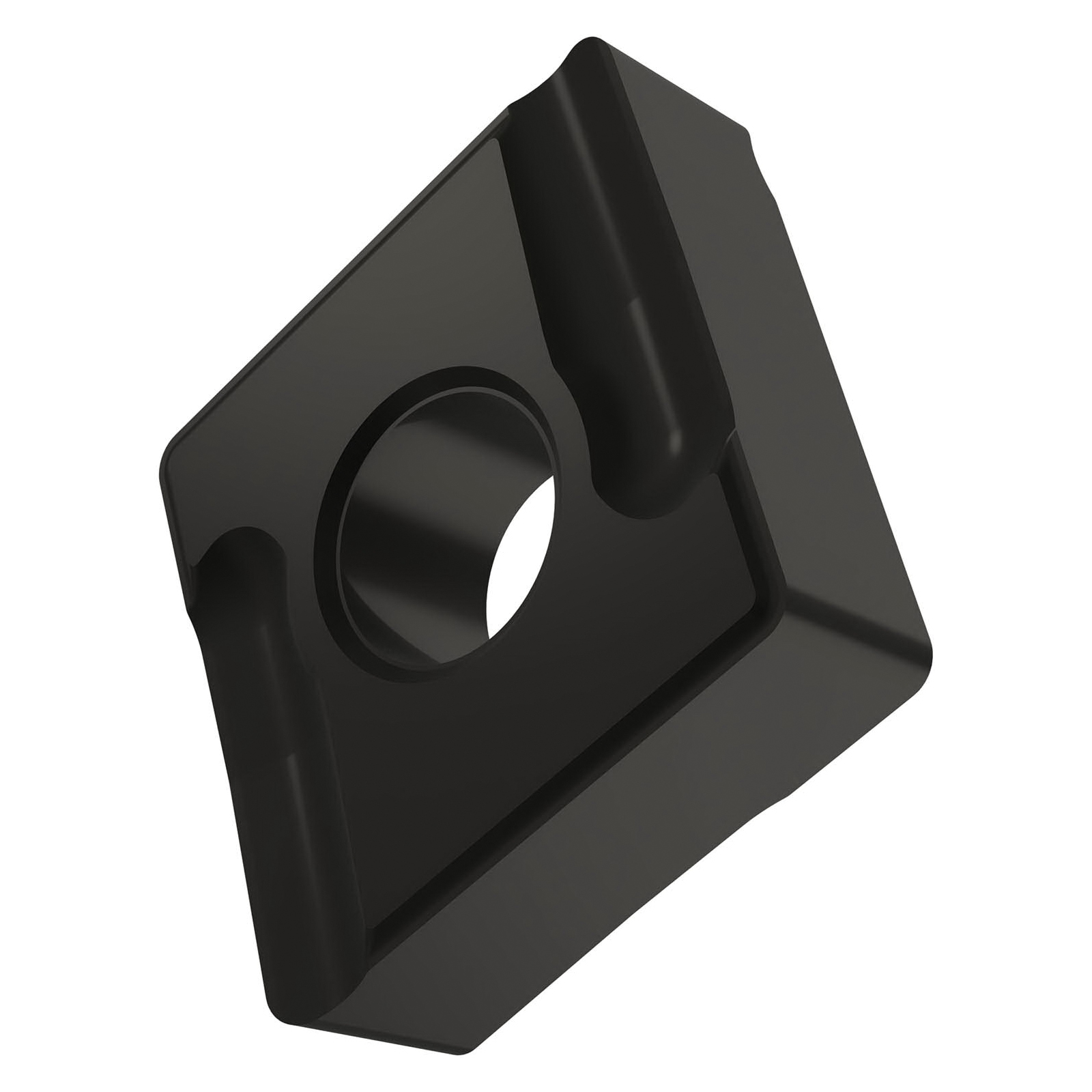

CNMG 431R-SI:T7335 TURNING INSERT - NEGATIVE
CNMG 431R-SI:T7335 TURNING INSERT - NEGATIVE
PRA6754750
6754750
10.14
/ EA
http://schema.org/OutOfStock
/Product/PRA6754750
- Applicable Materials: Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: SI
- Corner Radius: 0.4mm
- Hole Diameter: 5.16mm
- Included Angle: 80°
- Inscribed Circle: 12.7mm
- Insert Size: 431
- Insert Style: CNMG
- ISO Code: CNMG 120404ER-SI:T7335
- Material: Carbide
- Material Grade: M, P, S
- Maximum Depth of Cut Decimal Inch: 0.197
- Maximum Depth of Cut Metric: 5.0
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: MT-CVD Coated
- Thickness: 4.76mm
- Type: 12.9mm
- ANSI Code: CNMG 431R-SI:T7335
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T7335
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SI with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for medium to heavy machining of stainless-steels with a right handed turning tool
- Application
- Item Features
- Standards
Fine Finishing and Semi-Roughing
- T7335 grade functionally gradient substrate with medium grain size
- Relatively high cobalt content
- Relatively thin coating applied with the MT-CVD method
- Material shows very high strength
- Special surface finish for coating
- Medium cutting speeds
- Continuous and heavily interrupted cut
- Also withstands very unfavorable machining conditions
