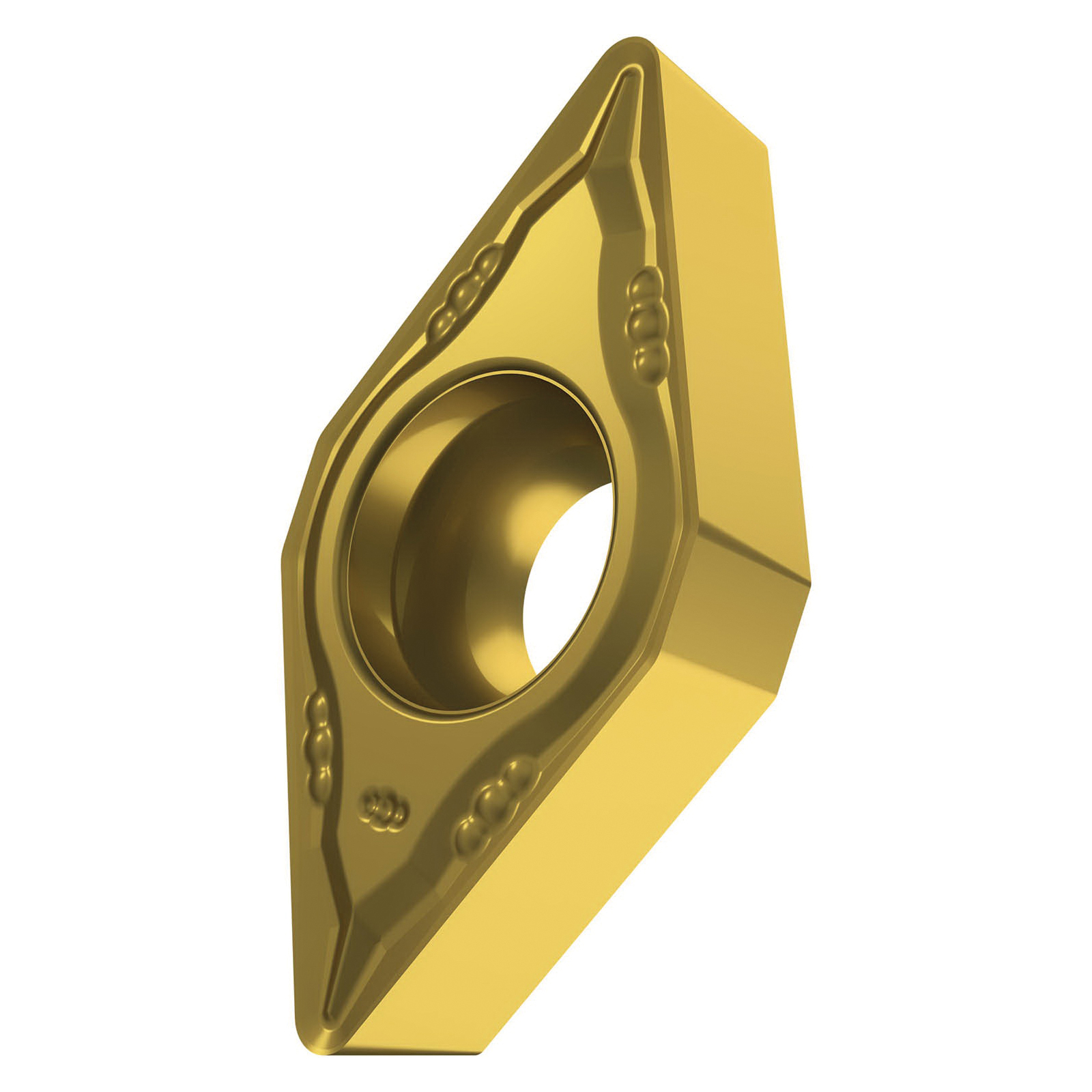

DCMT 21.50.5-FM:T8315 TURNING INSERT - POSITIVE
DCMT 21.50.5-FM:T8315 TURNING INSERT - POSITIVE
PRA6753612
6753612
7.69
/ EA
http://schema.org/OutOfStock
/Product/PRA6753612
- Applicable Materials: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: FM
- Corner Radius: 1/128in
- Hole Diameter: 0.114in
- Included Angle: 55°
- Inscribed Circle: 1/4in
- Insert Size: 21.50.5
- Insert Style: DCMT
- ISO Code: DCMT 070202E-FM T8315
- Material: Carbide
- Material Grade: H, K, M, N, P, S
- Maximum Depth of Cut Decimal Inch: 0.039
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 7
- Shape: Diamond
- Surface Treatment: PVD Coated
- Thickness: 3/32in
- Type: 0.307in
- ANSI Code: DCMT 21.50.5-FM T8315
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T8315
Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range M05-M20, for fine to medium machining of stainless-steels
- Application
- Item Features
- Standards
Finishing, Semi-Roughing and Drilling
- T8315 grade highly abrasion resistant material of the T8300 series with guaranteed strength
- Sub-micron substrate with a relatively low cobalt content
- Nano-layered PVD coating with gradient transitions
- Lower internal coating tension with higher hardness
- Lower notch wear on the main cutting edge
- Higher cutting speeds
- Medium chip cross sections
- Stable machining conditions
