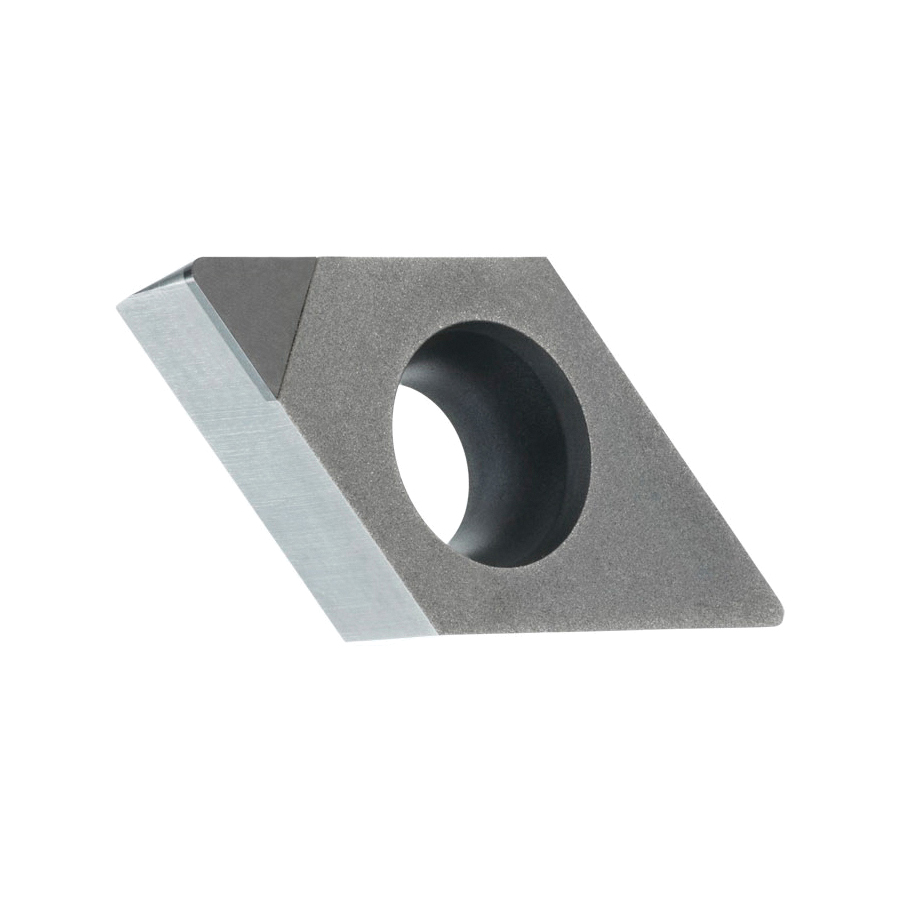

DCMW 32.51FN:PD1 TURNING INSERT PCD - POSITIVE
DCMW 32.51FN:PD1 TURNING INSERT PCD - POSITIVE
PRA6751869
6751869
111.24
/ EA
http://schema.org/OutOfStock
/Product/PRA6751869
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.173in
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: 32.51
- Insert Style: DCMW
- ISO Code: DCMW 11T304FN PD1
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.114
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 11
- Shape: Diamond
- Surface Treatment: PCD Coated
- Thickness: 5/32in
- Type: 0.457in
- ANSI Code: DCMW 32.51FN PD1
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PD1
- Manufacturer Name: Dormer Pramet
Turning insert with PCD tipped corner, 55 deg rhomboid with 7 deg clearance and inscribed circle diameter of 9.525 mm, 3.97 mm THK, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, sharp cutting edges, in grade PD1, an uncoated polycrystaline diamond within ISO range N05-N25, for high-speed machining of non-ferrous metals.
- Standards
