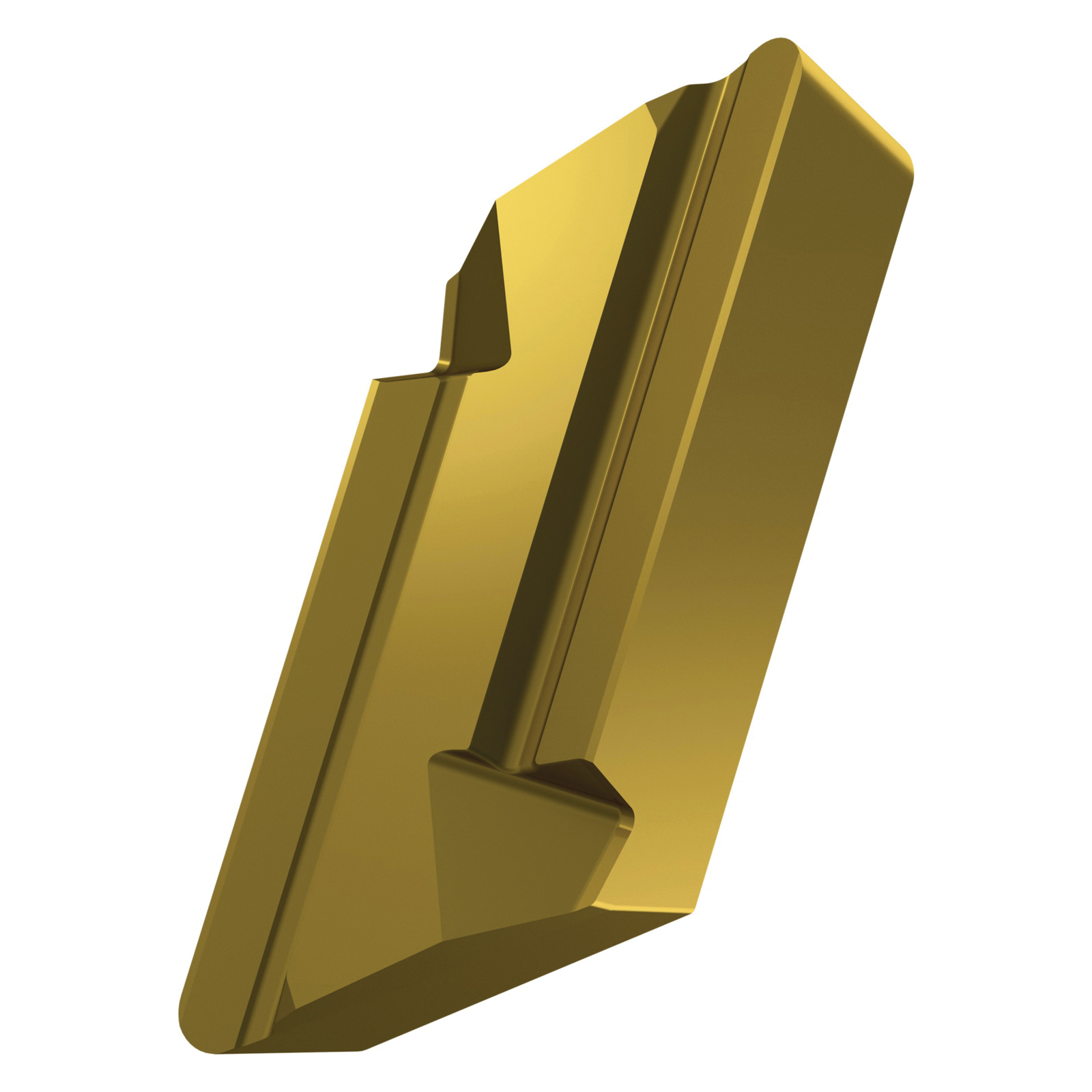

KNUX 160405SL-73:6640 TURNING INSERT - NEGATIVE
KNUX 160405SL-73:6640 TURNING INSERT - NEGATIVE
PRA6751685
6751685
13.61
/ EA
http://schema.org/OutOfStock
/Product/PRA6751685
- Applicable Materials: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: 73
- Corner Radius: 0.5mm
- Included Angle: 55°
- Inscribed Circle: 9.525mm
- Insert Size: 160405
- Insert Style: KNUX
- ISO Code: KNUX 160405SL-73 6640
- Material: Carbide
- Material Grade: K, M, P, S
- Maximum Depth of Cut Decimal Inch: 0.189
- Maximum Depth of Cut Metric: 4.8
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 16
- Shape: Parallelogram
- Surface Treatment: CVD Coated
- Thickness: 4.76mm
- Type: 19.5mm
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: 6640
Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 73 with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20-P40 and M20-M35, for medium to heavy machining of steels and stainless-steels with a left handed turning tool
- Application
- Item Features
- Standards
Semi-Roughing and Roughing
- 6640 grade substrate without cubic carbides (type H)
- Thin coating with TiCN supporting layer, applied with the MT-CVD method
- Especially for semi-roughing and roughing
- Lower to medium cutting speeds
- Interrupted cut and suited to unfavorable machining conditions
