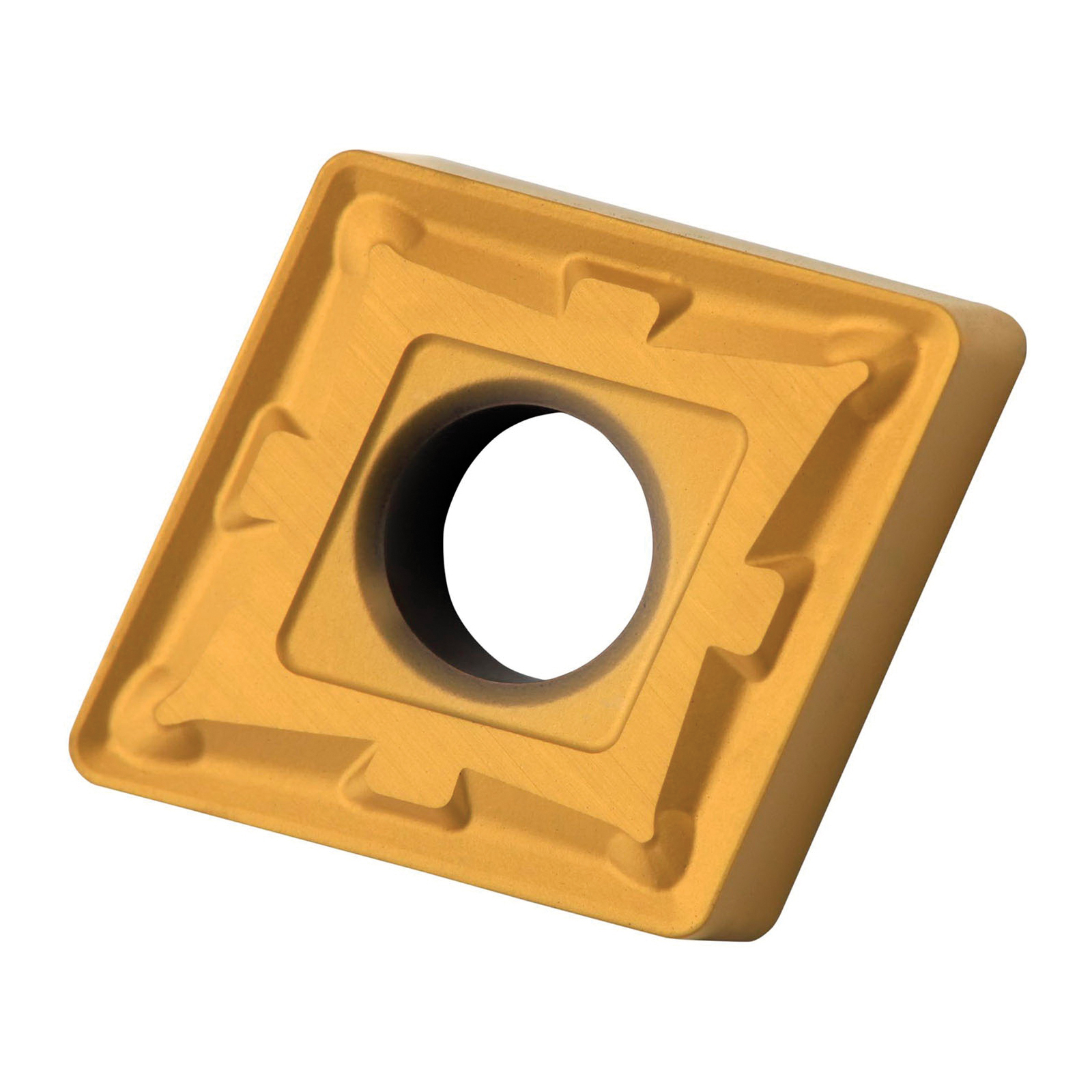

CNMG 432-M:6640 TURNING INSERT - NEGATIVE
CNMG 432-M:6640 TURNING INSERT - NEGATIVE
PRA6751506
6751506
9.56
/ EA
http://schema.org/OutOfStock
/Product/PRA6751506
- Applicable Materials: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: M
- Corner Radius: 0.8mm
- Hole Diameter: 5.16mm
- Included Angle: 80°
- Inscribed Circle: 12.7mm
- Insert Size: 432
- Insert Style: CNMG
- ISO Code: CNMG 120408E-M:6640
- Material: Carbide
- Material Grade: K, M, P, S
- Maximum Depth of Cut Decimal Inch: 0.236
- Maximum Depth of Cut Metric: 6.0
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: MT-CVD-TiCN Coated
- Thickness: 4.76mm
- Type: 12.9mm
- ANSI Code: CNMG 432-M:6640
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: 6640
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker M with rounded cutting edges, in grade 6640, a MT-CVD coated WC-Co carbide within ISO range P20-P40, for fine to heavy machining of steels
- Application
- Item Features
- Standards
Finishing and Semi-Roughing
- 6640 grade substrate without cubic carbides (type H)
- Thin coating with TiCN supporting layer, applied with the MT-CVD method
- Especially for semi-roughing and roughing
- Lower to medium cutting speeds
- Interrupted cut and suited to unfavorable machining conditions
