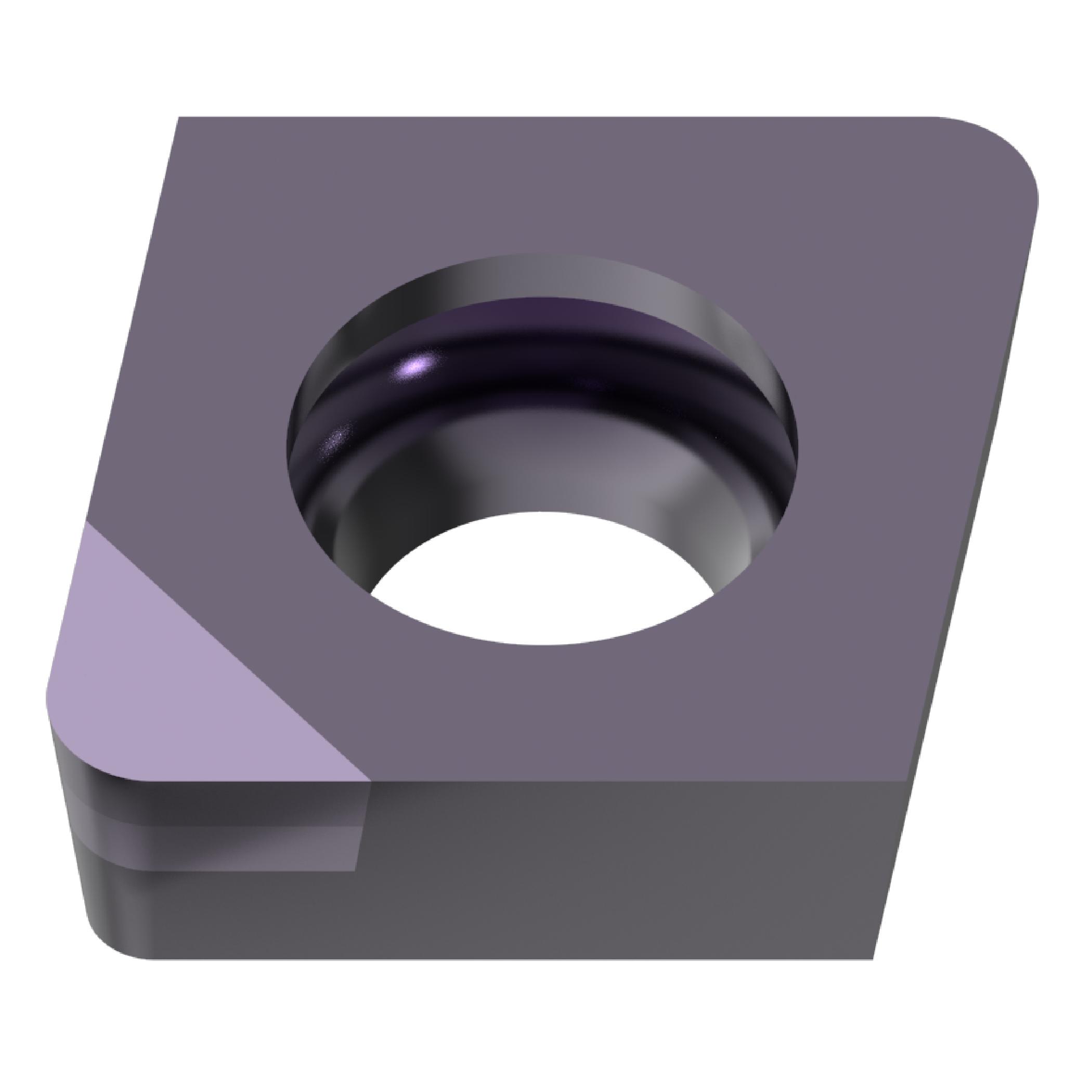

NP-CCGW03S102FS BC8110 CBN TURN INSERT
NP-CCGW03S102FS BC8110 CBN TURN INSERT
MIT836713
836713
67.85
/ EA
http://schema.org/OutOfStock
/Product/MIT836713
- Chipbreaker: FS
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.07 in
- Included Angle: 80 deg
- Inscribed Circle: 3.57 mm
- Insert Style: CCGW
- ISO Code: NP-CCGW03S102FS BC8110
- Material: CBN
- Rake: Negative
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 1.39 mm
- Type: Rounded
- ANSI Code: NP-CCGW03S102FS
- For Use On: High Hardness Steel
- Has Attributes: Yes
- Has Image: Yes
- Length: 3.63 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8110
- Application
For Continuous Machining
