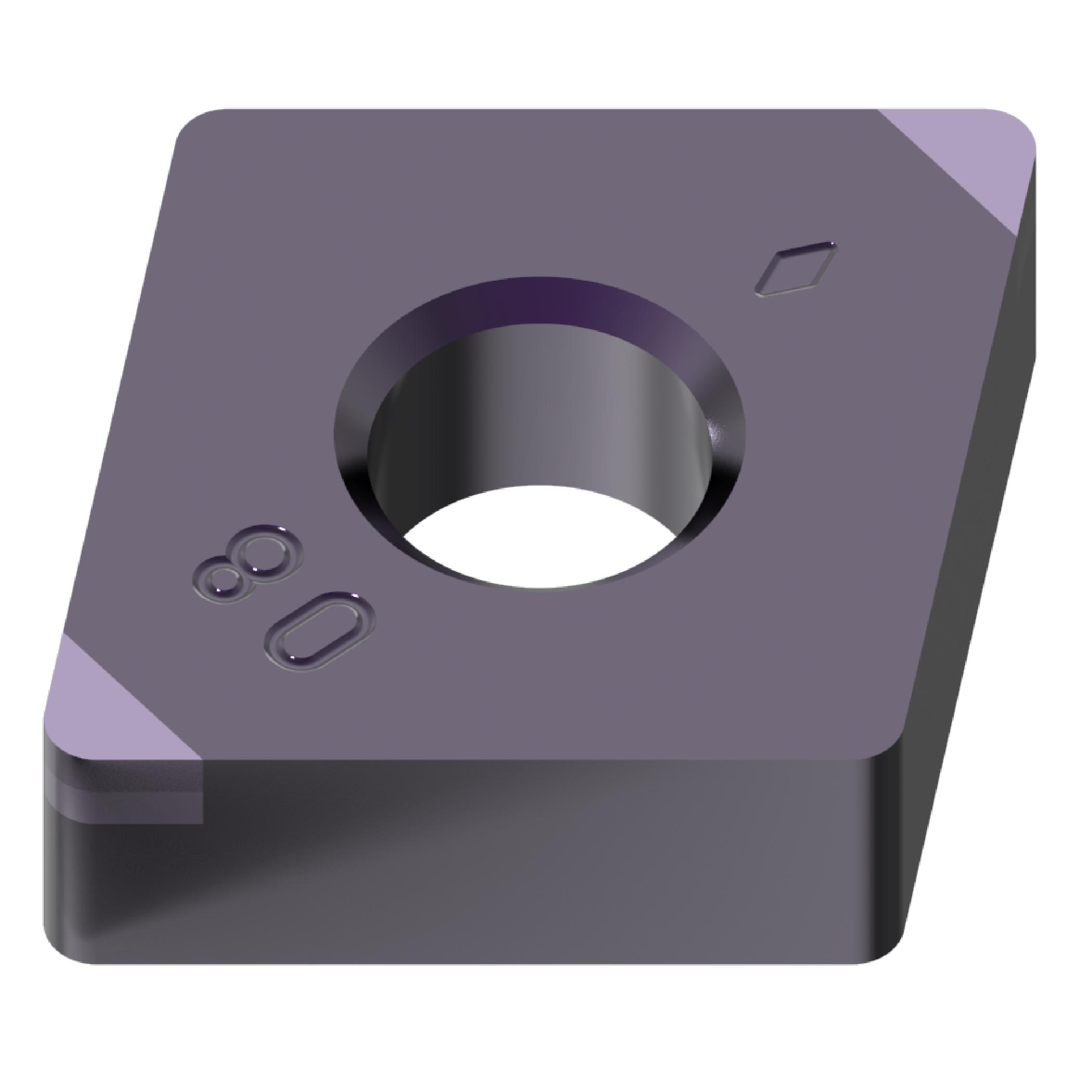

NP-CNGA432-FS2 BC8110 CBN TURNING INSERT
NP-CNGA432-FS2 BC8110 CBN TURNING INSERT
MIT835884
835884
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT835884
- Chipbreaker: FS
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.2 in
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNGA
- ISO Code: NP-CNGA120408FS2 BC8110
- Material: CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Rounded
- ANSI Code: NP-CNGA432-FS2 BC8110
- For Use On: High Hardness Steel
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8110
- Application
For Continuous Machining
