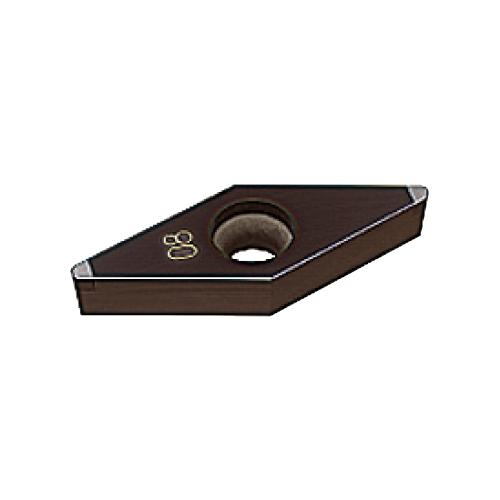

NP-VBGW331-FS2 BC8120 CBN TURNING INSERT
NP-VBGW331-FS2 BC8120 CBN TURNING INSERT
MIT811292
811292
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT811292
- Chipbreaker: FS
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.17 in
- Included Angle: 35 deg
- Inscribed Circle: 9.525 mm
- Insert Style: VBGW
- ISO Code: NP-VBGW160404FS2 BC8120
- Material: CBN
- Rake: Negative
- Relief Angle: 5 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Rounded
- ANSI Code: NP-VBGW331-FS2 BC8120
- For Use On: High Hardness Steel
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.61 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8120
- Application
For Continuous Machining
