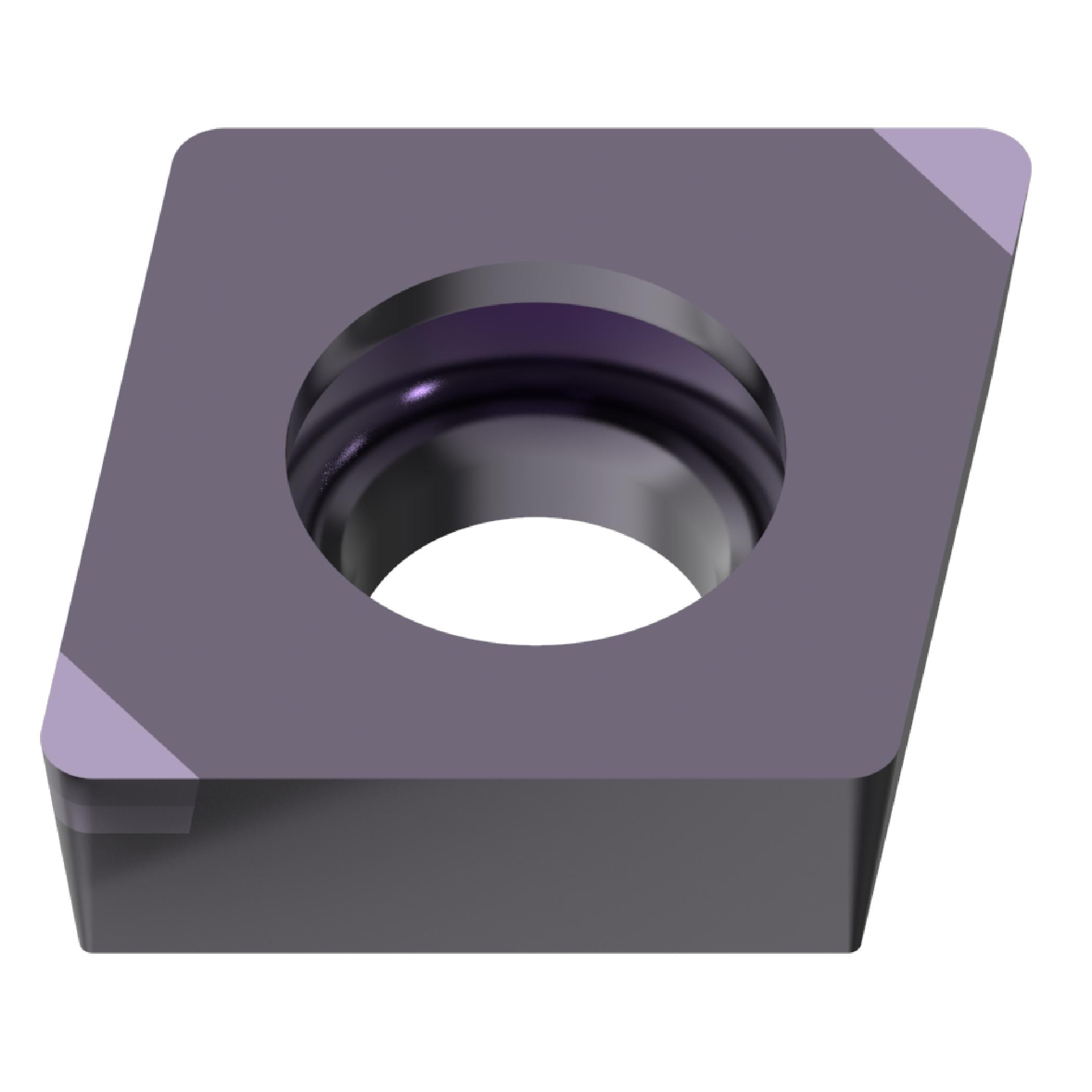

NP-CCGW21.52-GA2 BC8120 CBN INSERT
NP-CCGW21.52-GA2 BC8120 CBN INSERT
MIT810960
810960
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT810960
- Chipbreaker: GA
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.11 in
- Included Angle: 80 deg
- Inscribed Circle: 6.35 mm
- Insert Style: CCGW
- ISO Code: NP-CCGW060208GA2 BC8120
- Material: CBN
- Rake: Negative
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Rounded
- ANSI Code: NP-CCGW21.52-GA2 BC8120
- For Use On: High Hardness Steel
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.45 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8120
- Application
For Continuous-Light Interrupted Machining
