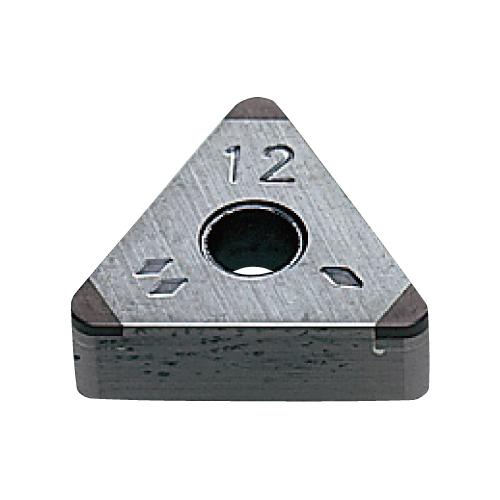

NP-TNGA333-GA3 BC8120 CBN TURNING INSERT
NP-TNGA333-GA3 BC8120 CBN TURNING INSERT
MIT810708
810708
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT810708
- Chipbreaker: GA
- Corner Radius: 1.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.15 in
- Included Angle: 60 deg
- Inscribed Circle: 9.525 mm
- Insert Style: TNGA
- ISO Code: NP-TNGA160412GA3 BC8120
- Material: CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Triangle
- Thickness: 4.76 mm
- Type: Rounded
- ANSI Code: NP-TNGA333-GA3 BC8120
- For Use On: High Hardness Steel
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8120
- Application
For Continuous-Light Interrupted Machining
