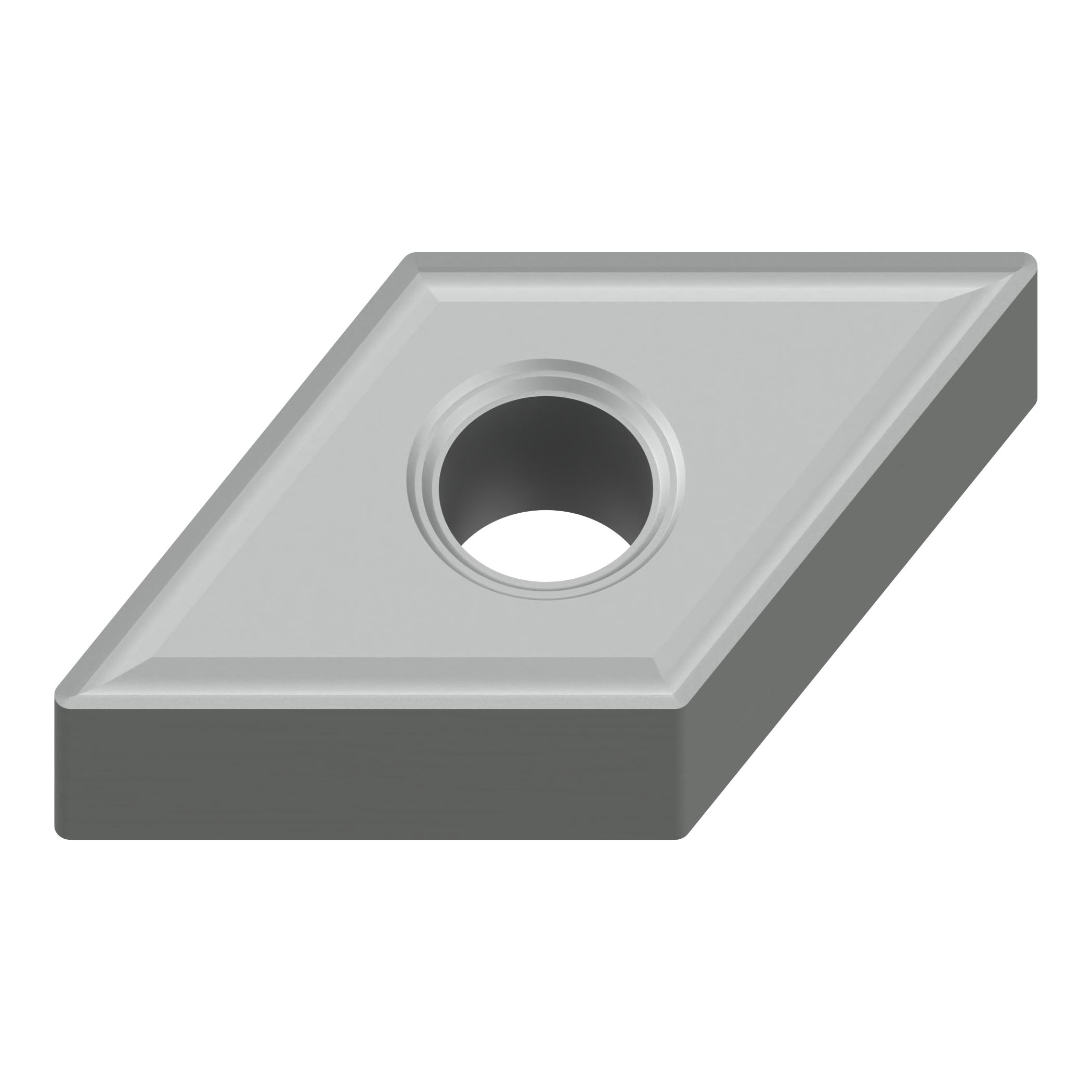

DNMG441MS MT9015 INSERT

DNMG441MS MT9015 INSERT

MIT803073 803073
22.33 / EA
http://schema.org/OutOfStock
DNMG441MS MT9015 INSERT
  • Chipbreaker: MS
  • Corner Radius: 0.4 mm
  • Cutting Direction: Neutral
  • Hole Diameter: 0.203 in
  • Included Angle: 55 deg
  • Inscribed Circle: 12.7 mm
  • Insert Style: DNMG
  • ISO Code: DNMG150604-MS MT9015
  • Material: Carbide
  • Rake: Negative
  • Relief Angle: 0 deg
  • Shape: Rhombic
  • Thickness: 6.35 mm
  • Type: Solid
  • ANSI Code: DNMG441MS MT9015
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 15.5 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: MT9015
QTY
Add to List
  • Application
For Difficult-to-cut Materials
