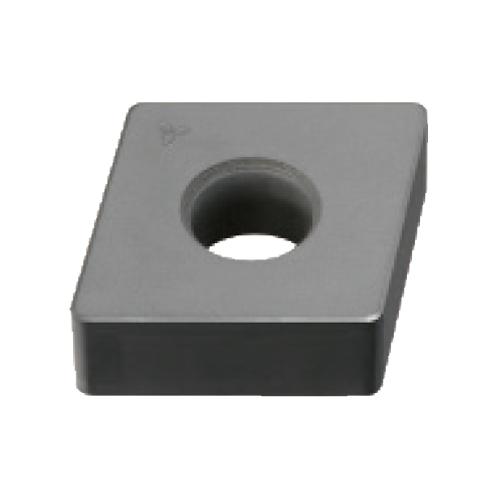

CNGA432 MBS140 CBN TURNING INSERT
CNGA432 MBS140 CBN TURNING INSERT
MIT801860
801860
284.03
/ EA
http://schema.org/OutOfStock
/Product/MIT801860
- Chipbreaker: Flat Top
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.203 in
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNGA
- ISO Code: CNGA120408 MBS140
- Material: CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Solid
- ANSI Code: CNGA432 MBS140
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MBS140
- Application
For Interrupted Machining
