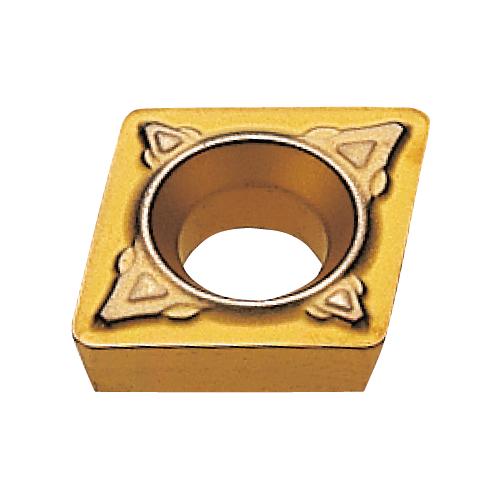

CPMH321SV MP3025 CPMH090304-SV MP3025
CPMH321SV MP3025 CPMH090304-SV MP3025
MIT616809
616809
14.68
/ EA
http://schema.org/OutOfStock
/Product/MIT616809
- Chipbreaker: SV
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.177 in
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CPMH
- ISO Code: CPMH090304-SV MP3025
- Material: Cermet
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Rhombic
- Thickness: 3.18 mm
- Type: Solid
- ANSI Code: CPMH321SV MP3025
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP3025
- Application
For Light Cutting
