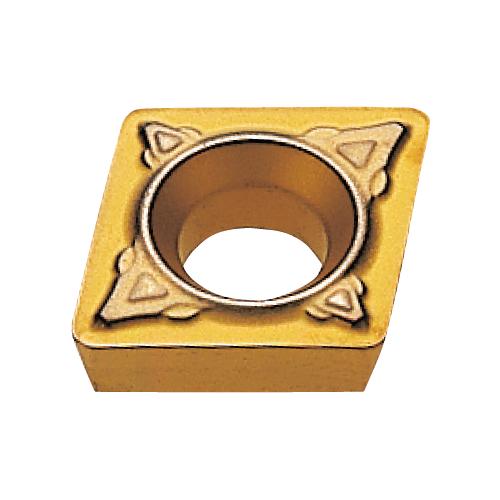

CPMH2.51.50.5SV MP3025 CPMH080202-SV
CPMH2.51.50.5SV MP3025 CPMH080202-SV
MIT616770
616770
13.78
/ EA
http://schema.org/OutOfStock
/Product/MIT616770
- Chipbreaker: SV
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.13 in
- Included Angle: 80 deg
- Inscribed Circle: 7.94 mm
- Insert Style: CPMH
- ISO Code: CPMH080202-SV MP3025
- Material: Cermet
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Solid
- ANSI Code: CPMH2.51.50.5SV MP3025
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.06 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP3025
- Application
For Light Cutting
