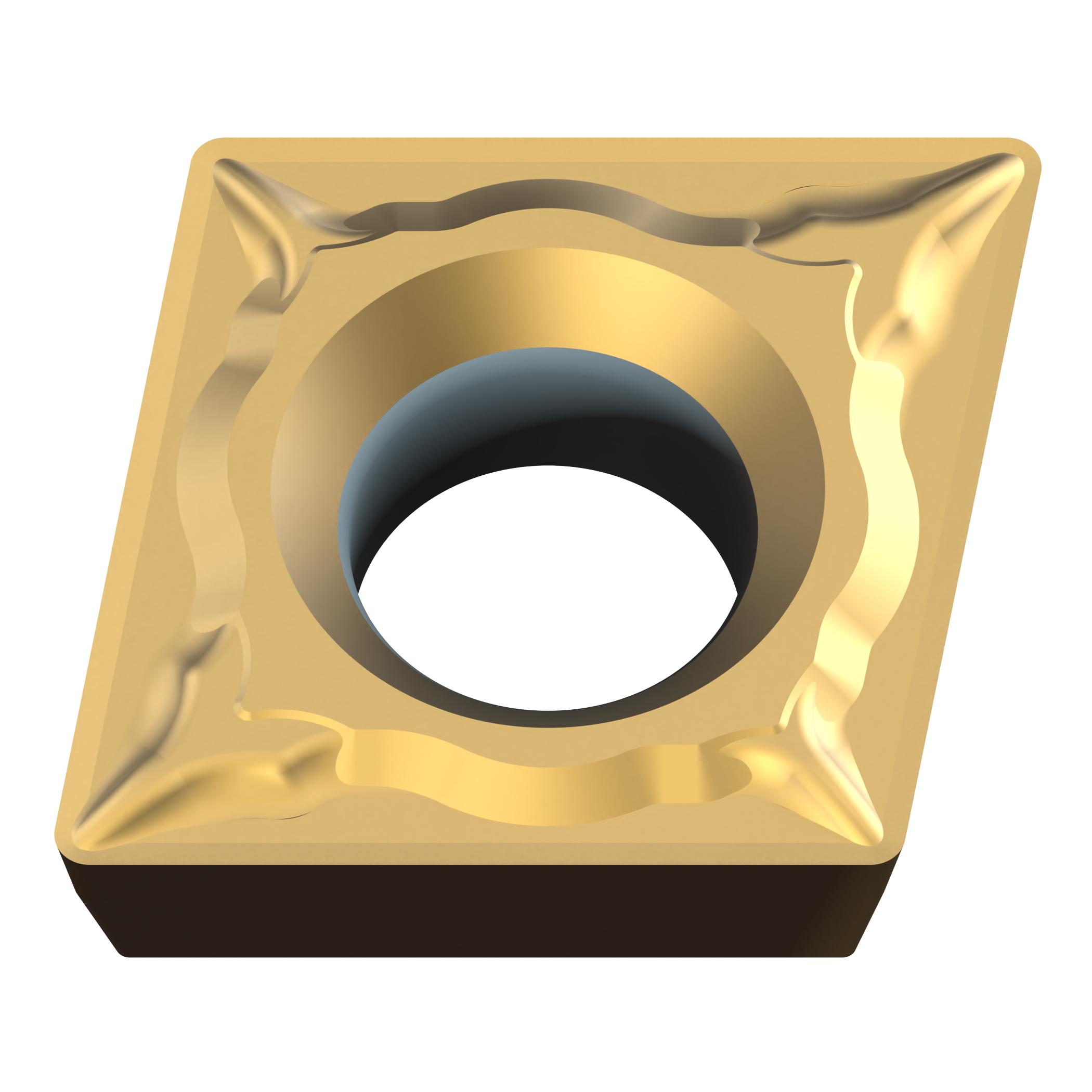

CPMH2.51.51FV MP3025 CPMH080204-FV
CPMH2.51.51FV MP3025 CPMH080204-FV
MIT616631
616631
13.78
/ EA
http://schema.org/OutOfStock
/Product/MIT616631
- Chipbreaker: FV
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.138 in
- Included Angle: 80 deg
- Inscribed Circle: 7.94 mm
- Insert Style: CPMH
- ISO Code: CPMH080204-FV MP3025
- Material: Cermet
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Solid
- ANSI Code: CPMH2.51.51FV MP3025
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.06 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP3025
- Application
For Finish Cutting
