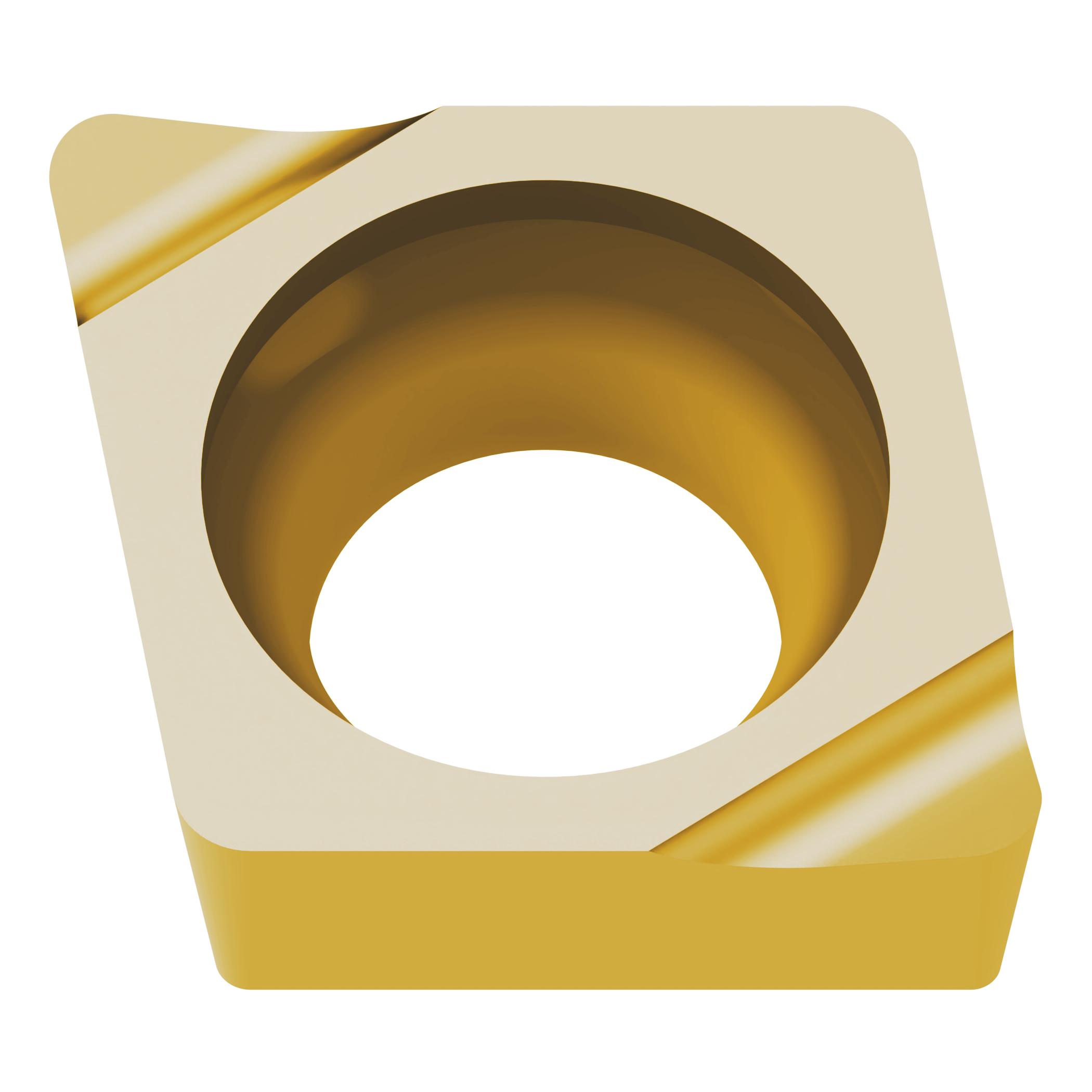

CCGT04T002L-F MP3025 CCGT04T002L-F
CCGT04T002L-F MP3025 CCGT04T002L-F
MIT615398
615398
22.77
/ EA
http://schema.org/OutOfStock
/Product/MIT615398
- Chipbreaker: F
- Corner Radius: 0.2 mm
- Cutting Direction: Left Hand
- Hole Diameter: 0.09 in
- Included Angle: 80 deg
- Inscribed Circle: 4.37 mm
- Insert Style: CCGT
- ISO Code: CCGT04T002L-F MP3025
- Material: Cermet
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 1.79 mm
- Type: Solid
- ANSI Code: CCGT04T002L-F
- Has Attributes: Yes
- Has Image: Yes
- Length: 4.44 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP3025
- Application
For Finish Cutting
