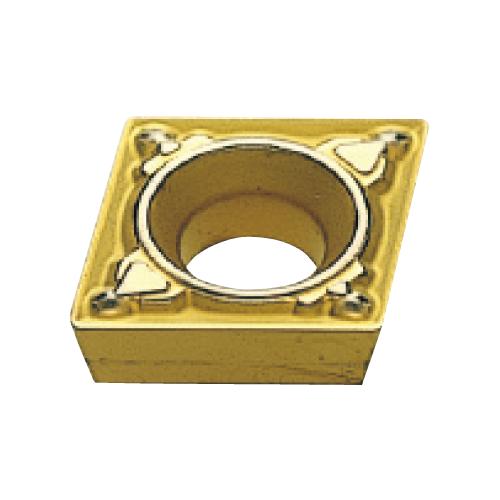

CPMH321MV MP3025 CPMH090304-MV MP3025
CPMH321MV MP3025 CPMH090304-MV MP3025
MIT603320
603320
14.68
/ EA
http://schema.org/OutOfStock
/Product/MIT603320
- Chipbreaker: MV
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.17 in
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CPMH
- ISO Code: CPMH090304-MV MP3025
- Material: Cermet
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Rhombic
- Thickness: 3.18 mm
- Type: Solid
- ANSI Code: CPMH321MV MP3025
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP3025
- Application
For Medium Cutting
