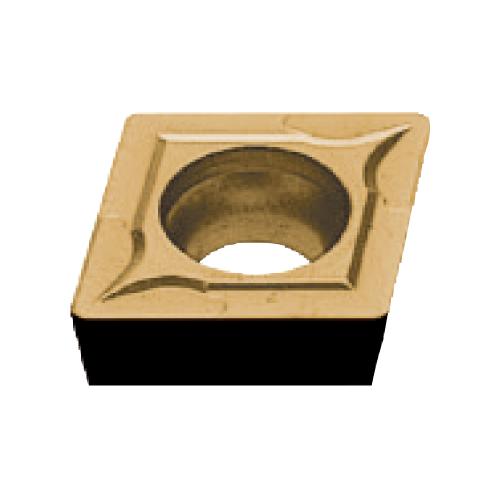

CCMT32.50.5 MP3025 CCMT09T302 MP3025
CCMT32.50.5 MP3025 CCMT09T302 MP3025
MIT602642
602642
14.17
/ EA
http://schema.org/OutOfStock
/Product/MIT602642
- Chipbreaker: standard
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.17 in
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCMT
- ISO Code: CCMT09T302 MP3025
- Material: Cermet
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Solid
- ANSI Code: CCMT32.50.5 MP3025
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP3025
- Application
For Medium Cutting
