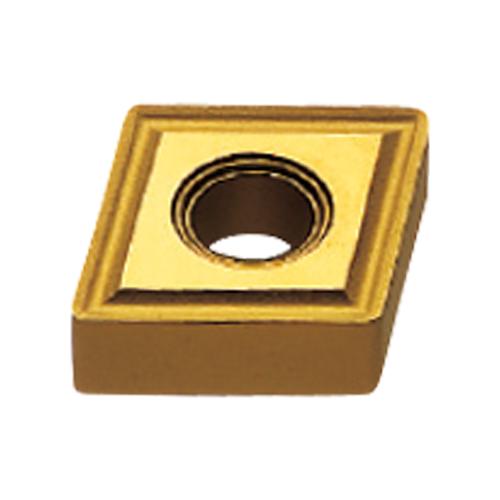

CNMG431MS US905 CNMG120404-MS US905
CNMG431MS US905 CNMG120404-MS US905
MIT492421
492421
16.07
/ EA
http://schema.org/OutOfStock
/Product/MIT492421
- Chipbreaker: MS
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.2 in
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNMG
- ISO Code: CNMG120404-MS US905
- Material: Carbide
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Solid
- ANSI Code: CNMG431MS US905
- For Use On: Difficult to Cut Material
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: US905
- Application
For Medium Cutting
