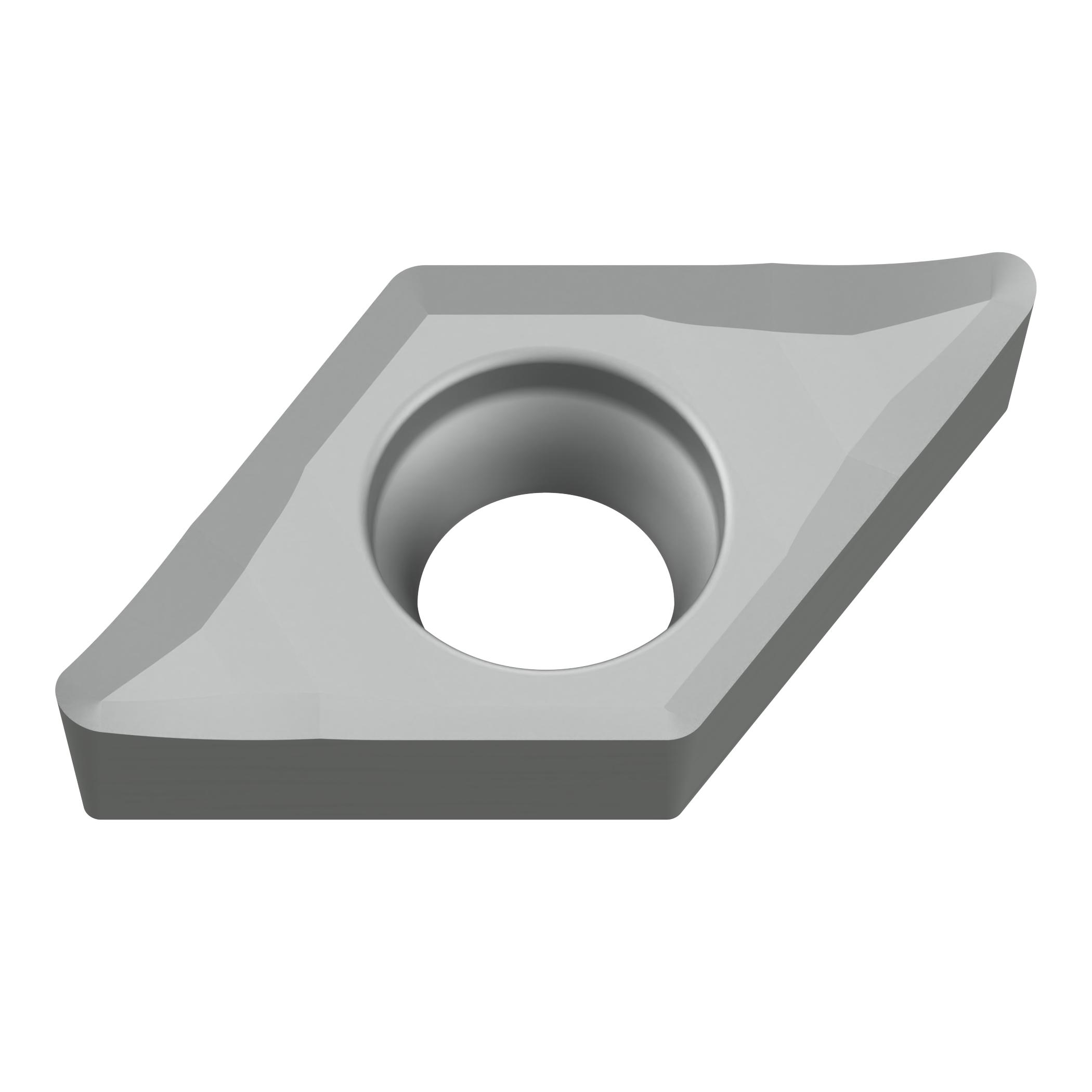

DCGT21.51AZ HTI10 DCGT070204-AZ HTI10
DCGT21.51AZ HTI10 DCGT070204-AZ HTI10
MIT461536
461536
17.09
/ EA
http://schema.org/OutOfStock
/Product/MIT461536
- Chipbreaker: AZ
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.11 in
- Included Angle: 55 deg
- Inscribed Circle: 6.35 mm
- Insert Style: DCGT
- ISO Code: DCGT070204-AZ HTi10
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Solid
- ANSI Code: DCGT21.51AZ HTi10
- Has Attributes: Yes
- Has Image: Yes
- Length: 7.75 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: HTi10
- Application
For Aluminum Alloy
