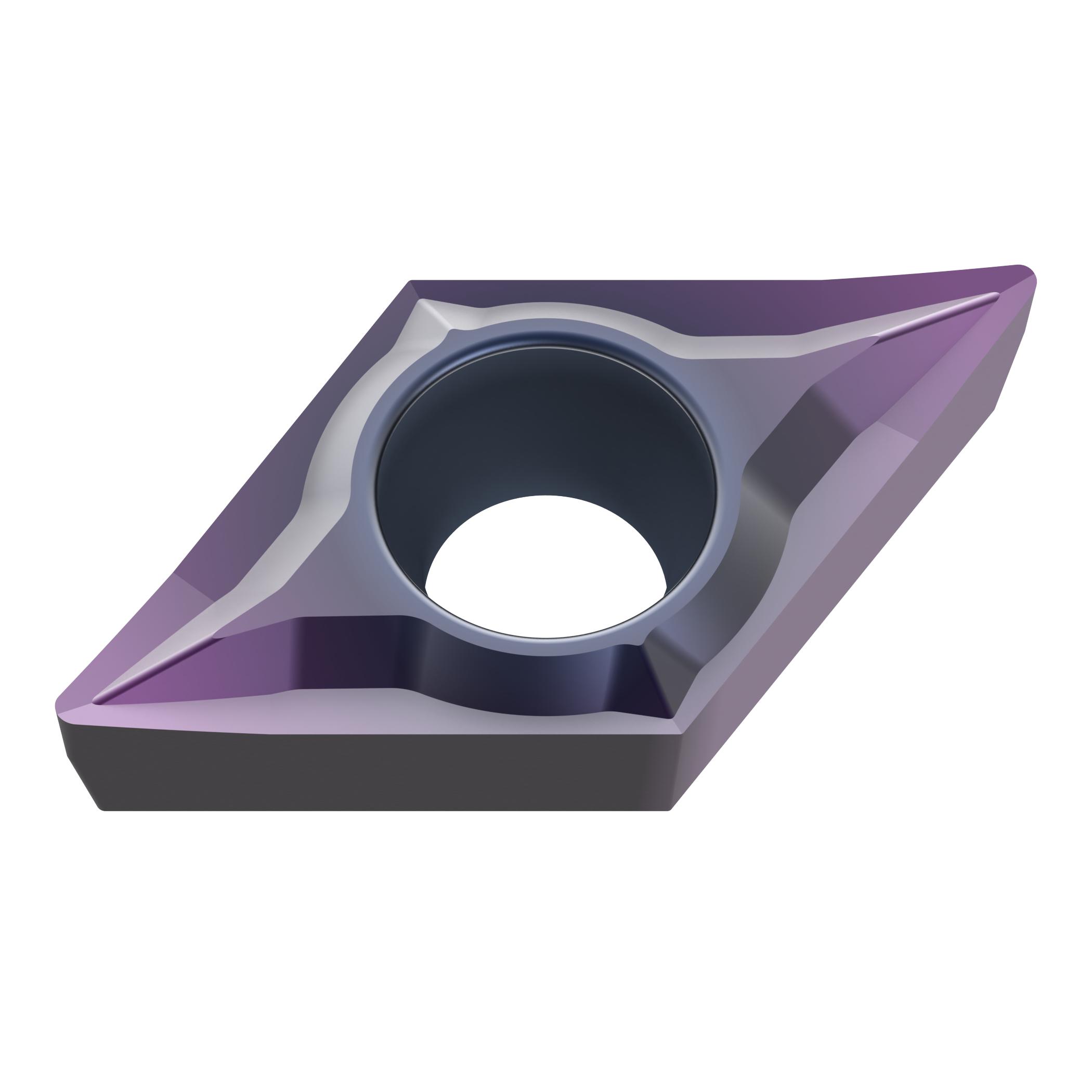

DCGT32.50.5MSMG VP15TF DCGT11T302M-SMG
DCGT32.50.5MSMG VP15TF DCGT11T302M-SMG
MIT459170
459170
17.83
/ EA
http://schema.org/OutOfStock
/Product/MIT459170
- Chipbreaker: SMG
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 55 deg
- Inscribed Circle: 9.525 mm
- Insert Style: DCGT
- ISO Code: DCGT11T302M-SMG VP15TF
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Solid
- ANSI Code: DCGT32.50.5MSMG VP15TF
- Has Attributes: Yes
- Has Image: Yes
- Length: 11.63 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: VP15TF
- Application
For Medium Cutting
