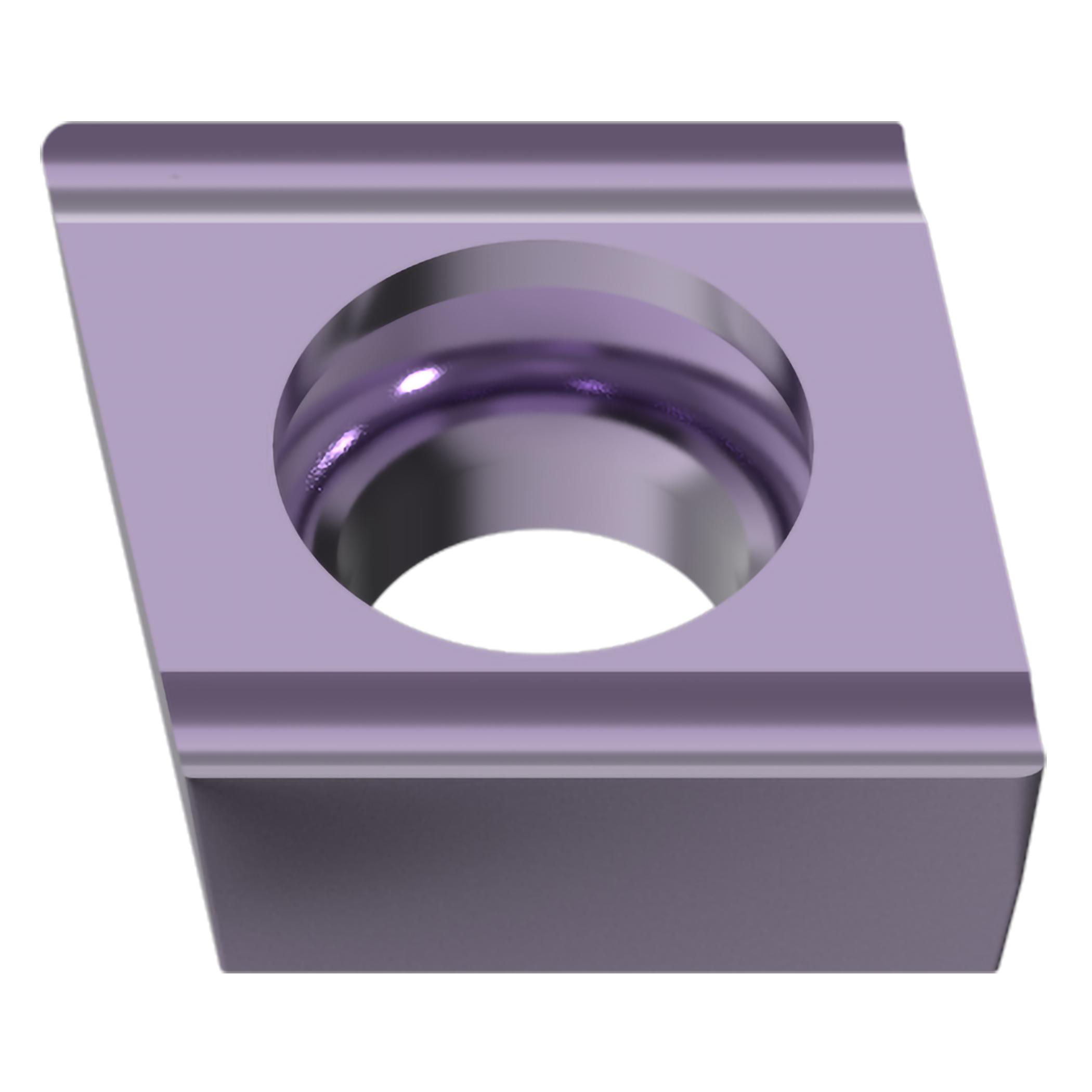

CCET21.5V3LSN VP15TF PVD COAT LH CARB INSERT
CCET21.5V3LSN VP15TF PVD COAT LH CARB INSERT
MIT272583
272583
14.79
/ EA
http://schema.org/OutOfStock
/Product/MIT272583
- Chipbreaker: SN
- Corner Radius: 0.03 mm
- Cutting Direction: Left Hand
- Hole Diameter: 0.1102 in
- Included Angle: 80 deg
- Inscribed Circle: 6.35 mm
- Insert Style: CCET
- ISO Code: CCET0602V3L-SN VP15TF
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Solid
- ANSI Code: CCET21.5V3LSN VP15TF
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.45 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: VP15TF
- Application
For Medium Cutting
