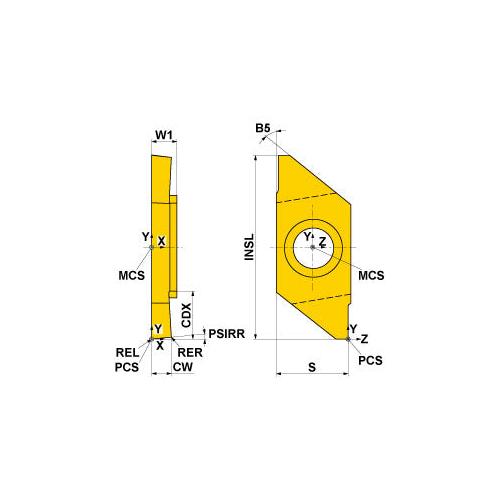

CTBT20145V5LR-B VP15TF SWISS CUT OFF INSERT
CTBT20145V5LR-B VP15TF SWISS CUT OFF INSERT
MIT267602
267602
57.12
/ EA
http://schema.org/OutOfStock
/Product/MIT267602
- Chipbreaker: B
- Corner Radius: 0.05 mm
- Cutting Direction: Right Hand
- Included Angle: 80 deg
- Insert Style: CTBT
- ISO Code: CTBT20145V5LR-B VP15TF
- Material: Carbide
- Maximum Depth of Cut: 9.2 mm
- Relief Angle: 6 deg
- Shape: Rhombic
- Thickness: 9.4 mm
- ANSI Code: CTBT20145V5LR-B
- For Use On: CTBH Holder
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.984 in
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: VP15TF
- Width: 3.5 mm
- Application
For External Cutting Off
