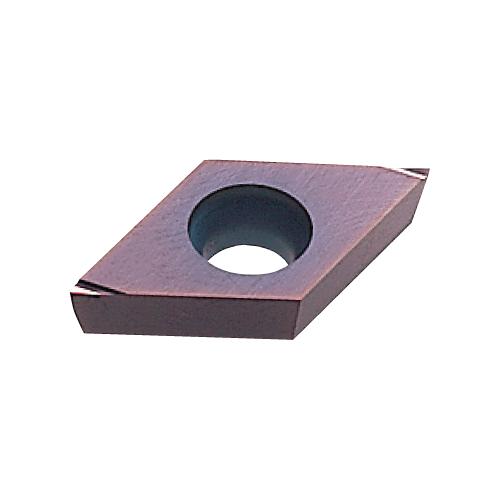

DCGT32.50.5LF VP15TF DCGT11T302L-F

DCGT32.50.5LF VP15TF DCGT11T302L-F

MIT229999 229999
17.83 / EA
http://schema.org/OutOfStock
DCGT32.50.5LF VP15TF DCGT11T302L-F
  • Chipbreaker: F
  • Corner Radius: 0.2 mm
  • Cutting Direction: Left Hand
  • Included Angle: 55 deg
  • Inscribed Circle: 9.525 mm
  • Insert Style: DCGT
  • ISO Code: DCGT11T302L-F VP15TF
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Rhombic
  • Thickness: 3.97 mm
  • Type: Positive
  • ANSI Code: DCGT32.50.5LF
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 11.63 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: VP15TF
QTY
Add to List
  • Application
For Finish Cutting
