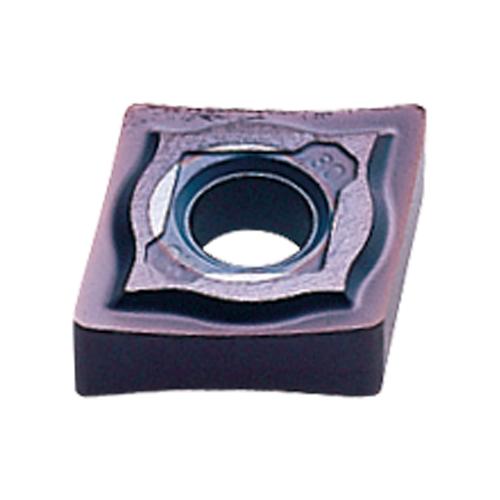

CNGG432MJ VP10RT carbide insert

CNGG432MJ VP10RT carbide insert

MIT198096 198096
20.53 / EA
http://schema.org/OutOfStock
CNGG432MJ VP10RT carbide insert
  • Chipbreaker: MJ
  • Corner Radius: 0.8 mm
  • Cutting Direction: Neutral
  • Hole Diameter: 0.203 in
  • Included Angle: 80 deg
  • Inscribed Circle: 12.7 mm
  • Insert Style: CNGG
  • ISO Code: CNGG120408-MJ VP10RT
  • Material: Carbide
  • Rake: Negative
  • Relief Angle: 0 deg
  • Shape: Rhombic
  • Thickness: 4.76 mm
  • Type: Negative
  • ANSI Code: CNGG432MJ
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 12.9 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: VP10RT
QTY
Add to List
  • Application
For Light Cutting
