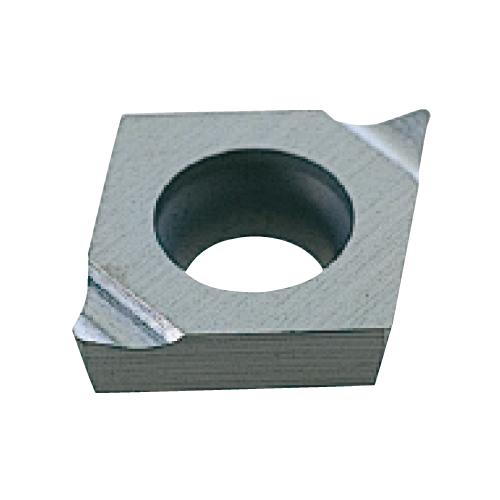

CPGT2.51.50.5 HTi10 CPGT080202 HTi10
CPGT2.51.50.5 HTi10 CPGT080202 HTi10
MIT117427
117427
17.50
/ EA
http://schema.org/OutOfStock
/Product/MIT117427
- Chipbreaker: standard
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.134 in
- Included Angle: 80 deg
- Inscribed Circle: 7.94 mm
- Insert Style: CPGT
- ISO Code: CPGT080202 HTi10
- Material: Carbide
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Positive
- ANSI Code: CPGT2.51.50.5
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.06 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: HTi10
- Application
For Finish Cutting
