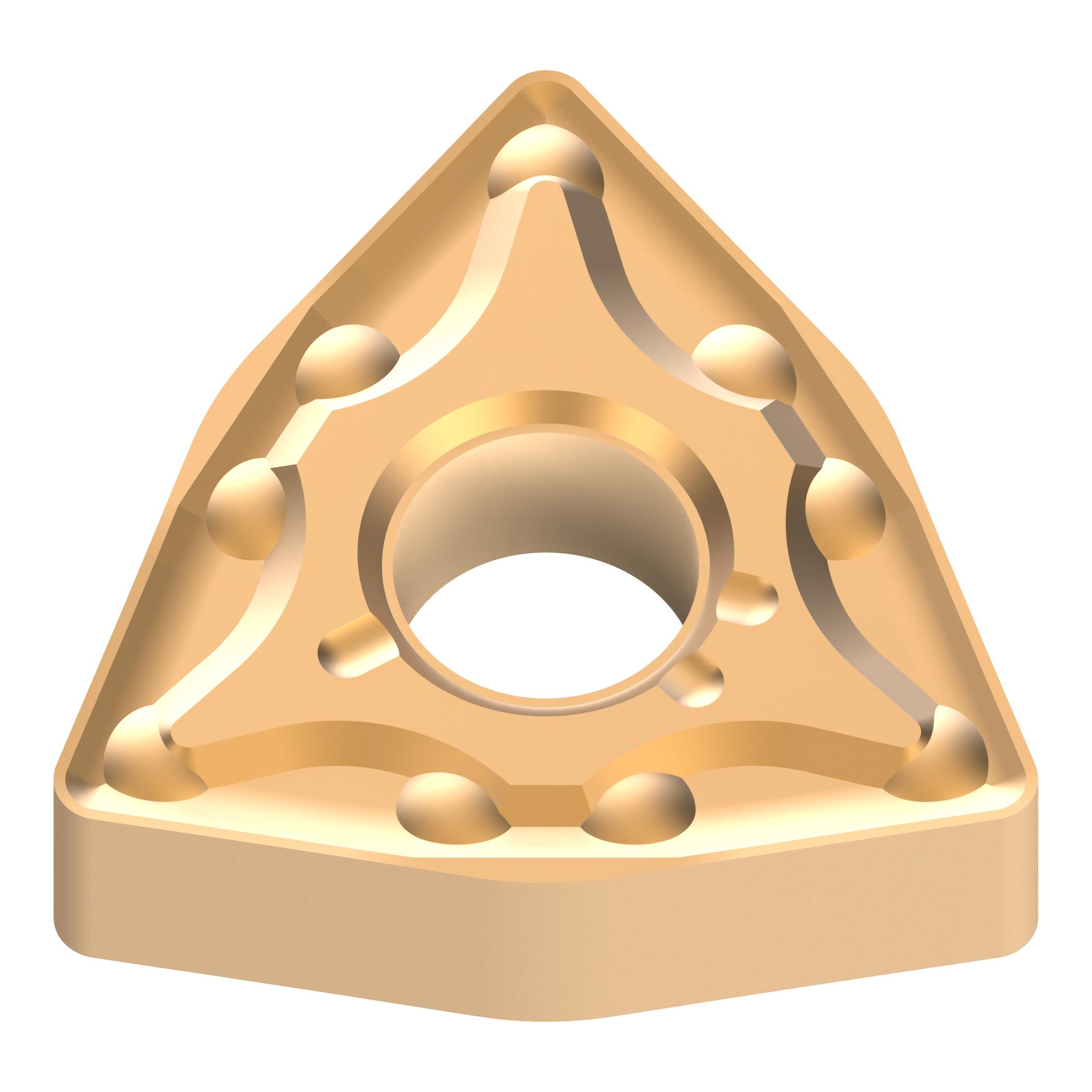

WNMG431MA US735 CVD CARBIDE TURN INSERT
WNMG431MA US735 CVD CARBIDE TURN INSERT
MIT109118
109118
160.67
/ PK (10)
http://schema.org/OutOfStock
/Product/MIT109118
- Chipbreaker: MA
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: WNMG
- ISO Code: WNMG080404-MA US735
- Material: Carbide
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Trigon
- Thickness: 4.76 mm
- Type: Solid
- ANSI Code: WNMG431MA US735
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.69 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: US735
- Application
For Medium Cutting
