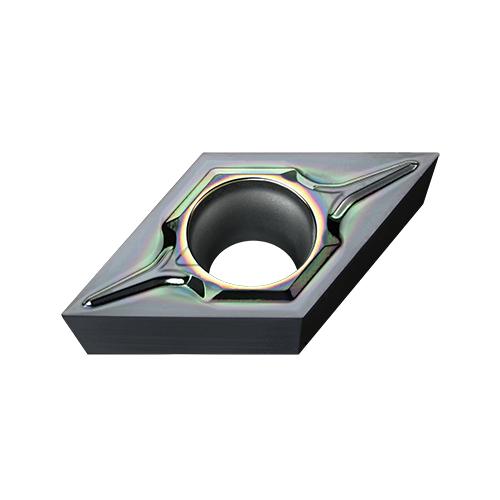

DCGT32.50.5MLS-P MS7025 INSERT

DCGT32.50.5MLS-P MS7025 INSERT

MIT10643433 10643433
25.29 / EA
http://schema.org/OutOfStock
DCGT32.50.5MLS-P MS7025 INSERT
  • Chipbreaker: LS-P
  • Corner Radius: 0.2 mm
  • Cutting Direction: Neutral
  • Hole Diameter: 0.173 in
  • Included Angle: 55 deg
  • Inscribed Circle: 9.525 mm
  • Insert Style: DCGT
  • ISO Code: DCGT11T302M-LS-P MS7025
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Rhombic
  • Thickness: 3.97 mm
  • Type: Solid
  • ANSI Code: DCGT32.50.5MLS-P
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 11.63 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: MS7025
QTY
Add to List
  • Application
For Difficult-to-cut Materials
