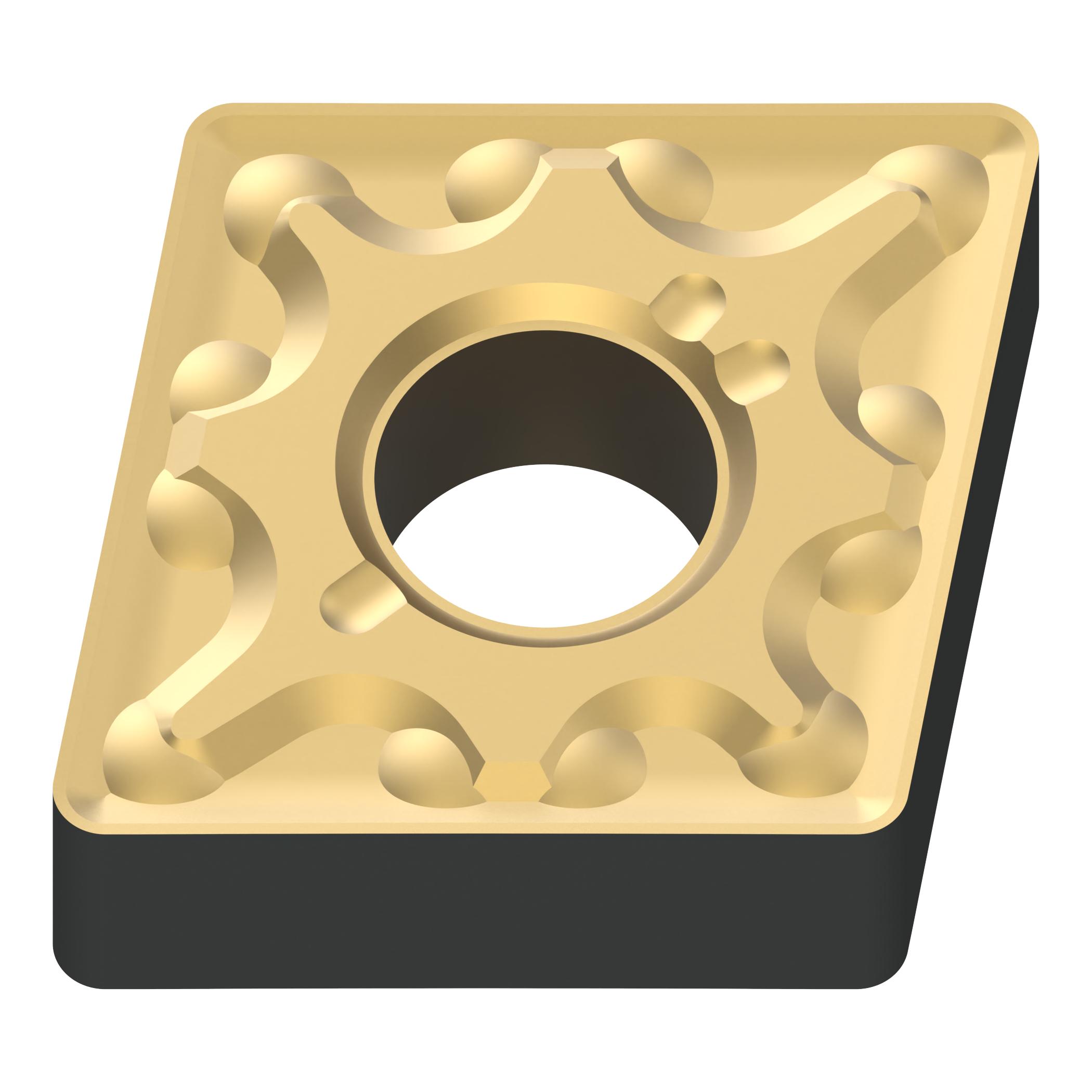

CNMG432MA MC6125 INSERT
CNMG432MA MC6125 INSERT
MIT10635667
10635667
16.07
/ EA
http://schema.org/OutOfStock
/Product/MIT10635667
- Chipbreaker: MA
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.203 in
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNMG
- ISO Code: CNMG120408-MA MC6125
- Material: Carbide
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Solid
- ANSI Code: CNMG432MA
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MC6125
- Application
For Medium Cutting
