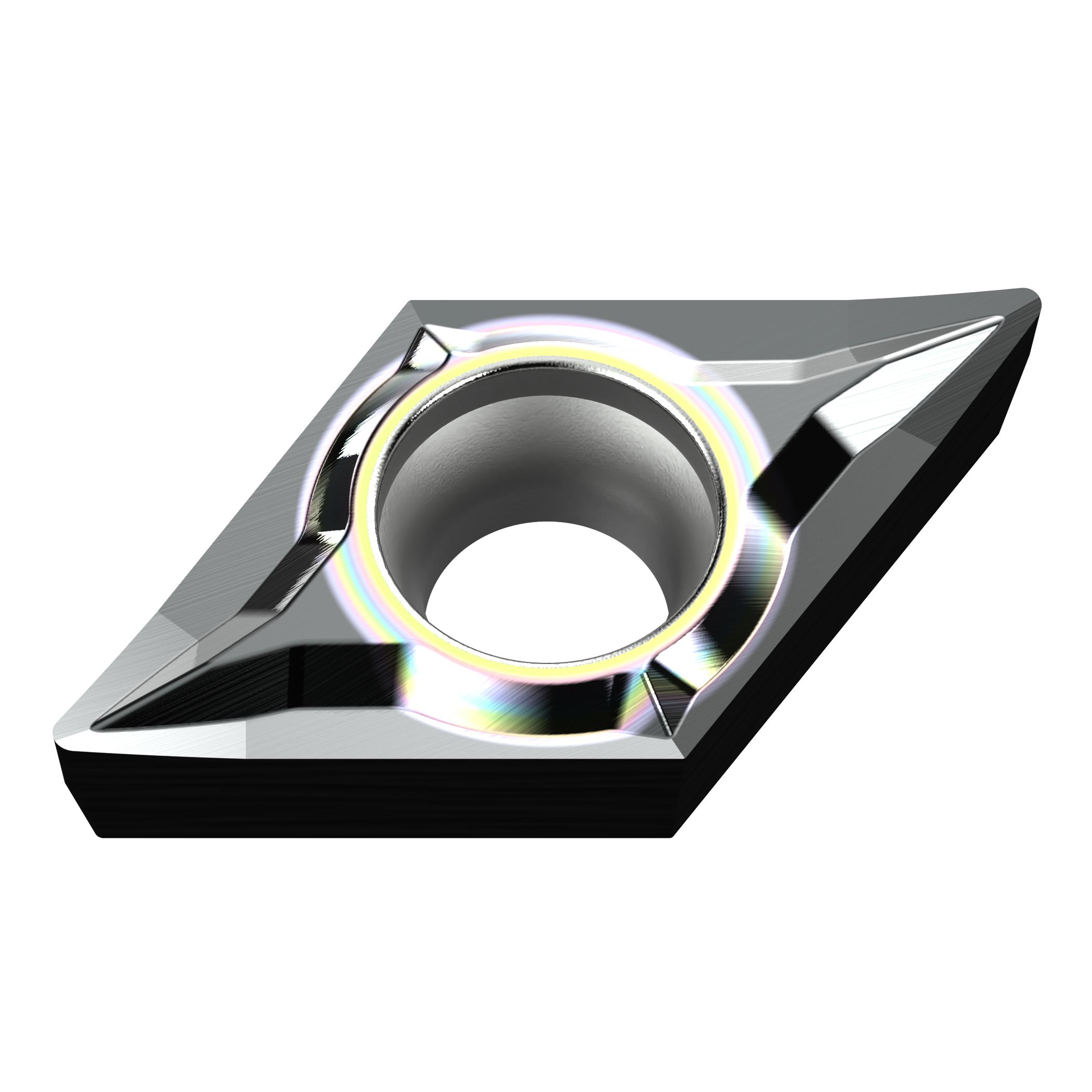

DCGT32.51MFS-P MS9025 TURNING INSERT
DCGT32.51MFS-P MS9025 TURNING INSERT
MIT10612149
10612149
17.83
/ EA
http://schema.org/OutOfStock
/Product/MIT10612149
- Chipbreaker: FS-P
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 55 deg
- Inscribed Circle: 9.525 mm
- Insert Style: DCGT
- ISO Code: DCGT11T304M-FS-P MS9025
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Solid
- ANSI Code: DCGT32.51MFS-P
- Has Attributes: Yes
- Has Image: Yes
- Length: 11.63 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MS9025
- Application
For Difficult-to-cut Materials
