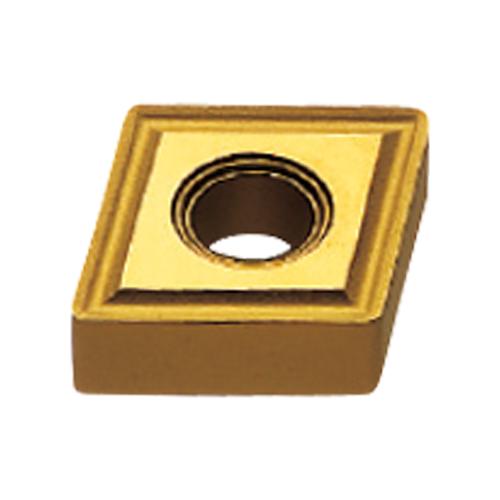

CNMG432MS MP9025 INSERT

CNMG432MS MP9025 INSERT

MIT10600795 10600795
12.88 / EA
http://schema.org/OutOfStock
CNMG432MS MP9025 INSERT
  • Chipbreaker: MS
  • Corner Radius: 0.8 mm
  • Cutting Direction: Neutral
  • Included Angle: 80 deg
  • Inscribed Circle: 12.7 mm
  • Insert Style: CNMG
  • ISO Code: CNMG120408-MS MP9025
  • Material: Carbide
  • Rake: Negative
  • Relief Angle: 0 deg
  • Shape: Rhombic
  • Thickness: 4.76 mm
  • Type: Solid
  • ANSI Code: CNMG432MS
  • For Use On: Heat Resistant Alloy
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 12.9 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: MP9025
QTY
Add to List
  • Application
For Difficult-to-cut Materials
