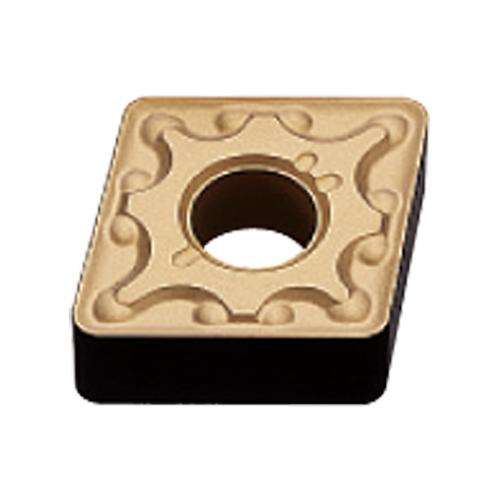

CNMG433MA MP9025 INSERT
CNMG433MA MP9025 INSERT
MIT10600733
10600733
14.05
/ EA
http://schema.org/OutOfStock
/Product/MIT10600733
- Chipbreaker: MA
- Corner Radius: 1.2 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNMG
- ISO Code: CNMG120412-MA MP9025
- Material: Carbide
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Solid
- ANSI Code: CNMG433MA
- For Use On: Cast Iron, Heat Resistant Alloy
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP9025
- Application
For Difficult-to-cut Materials
