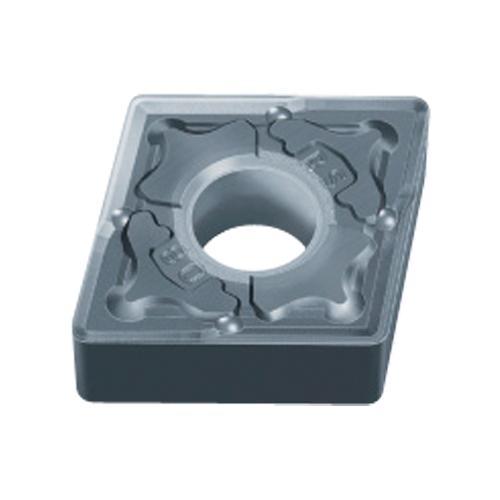

CNMG432RS MP9025 INSERT
CNMG432RS MP9025 INSERT
MIT10600641
10600641
12.88
/ EA
http://schema.org/OutOfStock
/Product/MIT10600641
- Chipbreaker: RS
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.203 in
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNMG
- ISO Code: CNMG120408-RS MP9025
- Material: Carbide
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Solid
- ANSI Code: CNMG432RS
- For Use On: Heat Resistant Alloy
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP9025
- Application
For Difficult-to-cut Materials
