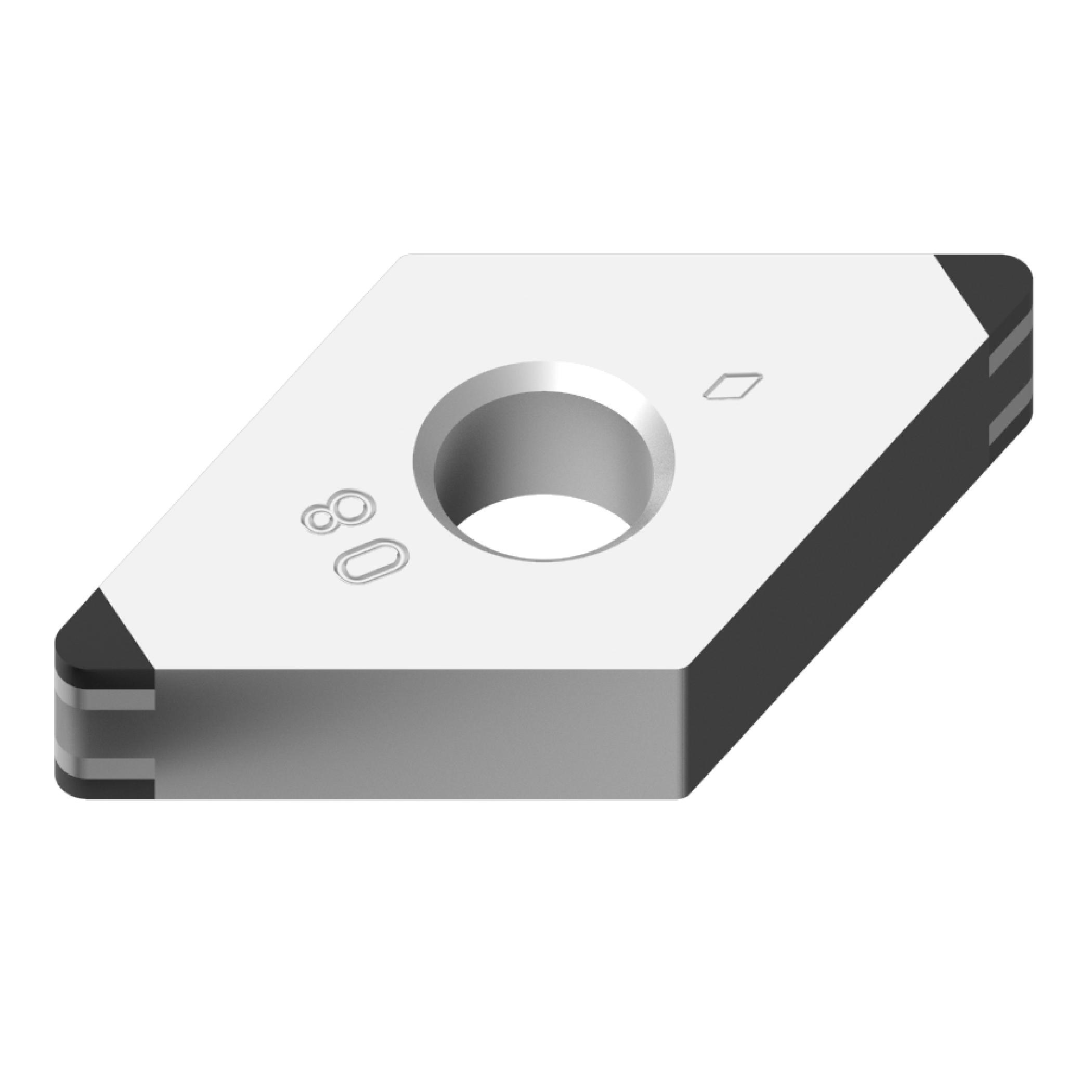

NP-DNGA432-TH4 MB8130 CBN INSERT
NP-DNGA432-TH4 MB8130 CBN INSERT
MIT10600276
10600276
174.22
/ EA
http://schema.org/OutOfStock
/Product/MIT10600276
- Chipbreaker: Flat Top
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.203 in
- Included Angle: 55 deg
- Inscribed Circle: 12.7 mm
- Insert Style: DNGA
- ISO Code: NP-DNGA150408TH4 MB8130
- Material: CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: 4-Corner
- ANSI Code: NP-DNGA432-TH4 MB8130
- Has Attributes: Yes
- Has Image: Yes
- Length: 15.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8130
- Application
For Interrupted Machining
