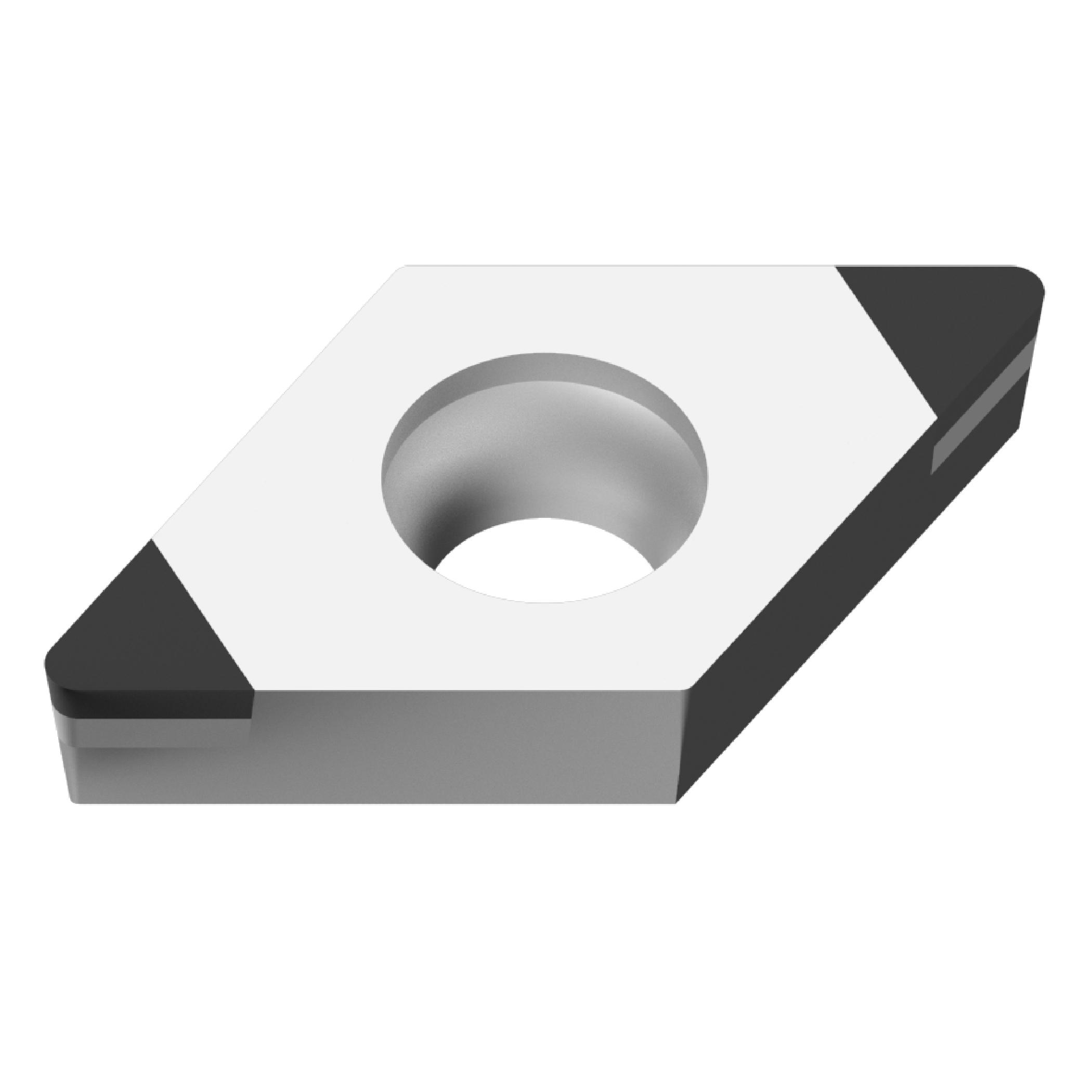

NP-DCGW21.51-TA2 MB8130 CBN INSERT
NP-DCGW21.51-TA2 MB8130 CBN INSERT
MIT10600146
10600146
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10600146
- Chipbreaker: TA
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Included Angle: 55 deg
- Inscribed Circle: 6.35 mm
- Insert Style: DCGW
- ISO Code: NP-DCGW070204TA2 MB8130
- Material: Carbon
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Positive
- ANSI Code: NP-DCGW21.51-TA2
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 7.75 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8130
- Application
For Interrupted Machining
