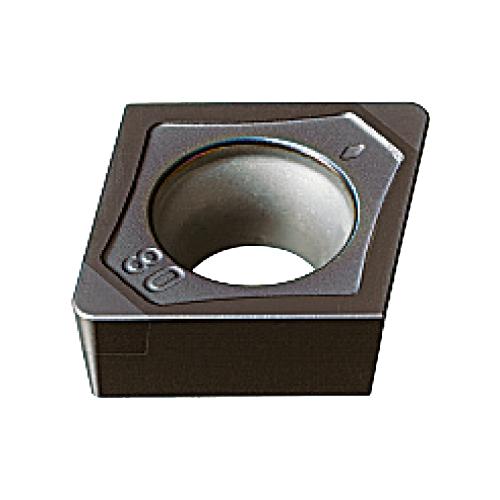

NP-CCGW32.52-TA2 MB8130 CBN INSERT
NP-CCGW32.52-TA2 MB8130 CBN INSERT
MIT10600009
10600009
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10600009
- Chipbreaker: TA
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCGW
- ISO Code: NP-CCGW09T308TA2 MB8130
- Material: Carbon
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Positive
- ANSI Code: NP-CCGW32.52-TA2
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8130
- Application
For Interrupted Machining
