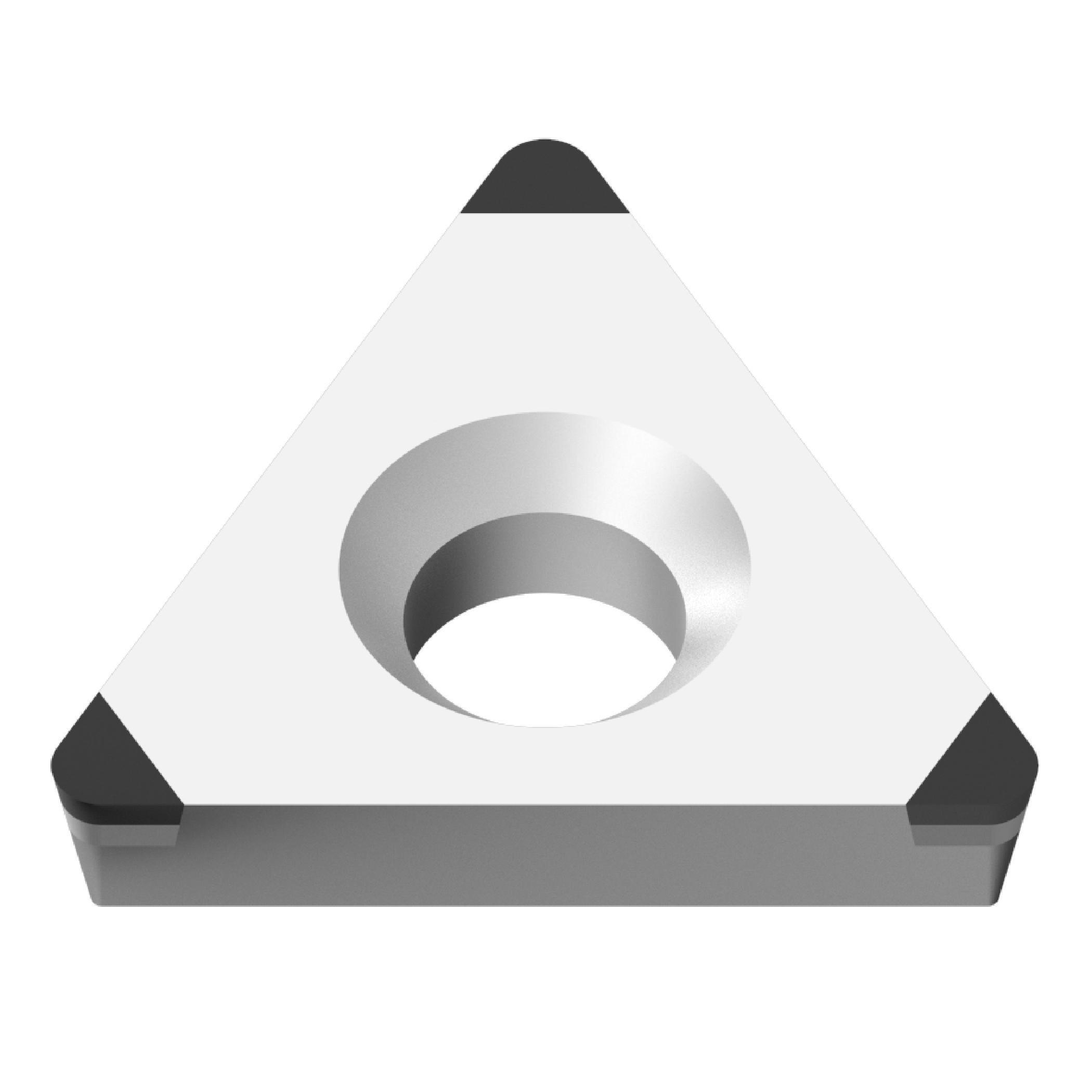

NP-TPGB222-TA3 MB8120 CBN INSERT
NP-TPGB222-TA3 MB8120 CBN INSERT
MIT10599709
10599709
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT10599709
- Chipbreaker: Flat Top
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.134 in
- Included Angle: 60 deg
- Inscribed Circle: 6.35 mm
- Insert Style: TPGB
- ISO Code: NP-TPGB110308TA3 MB8120
- Material: CBN
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Triangle
- Thickness: 3.18 mm
- Type: 3-Corner
- ANSI Code: NP-TPGB222-TA3 MB8120
- Has Attributes: Yes
- Has Image: Yes
- Length: 11 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8120
- Application
For Interrupted Machining
