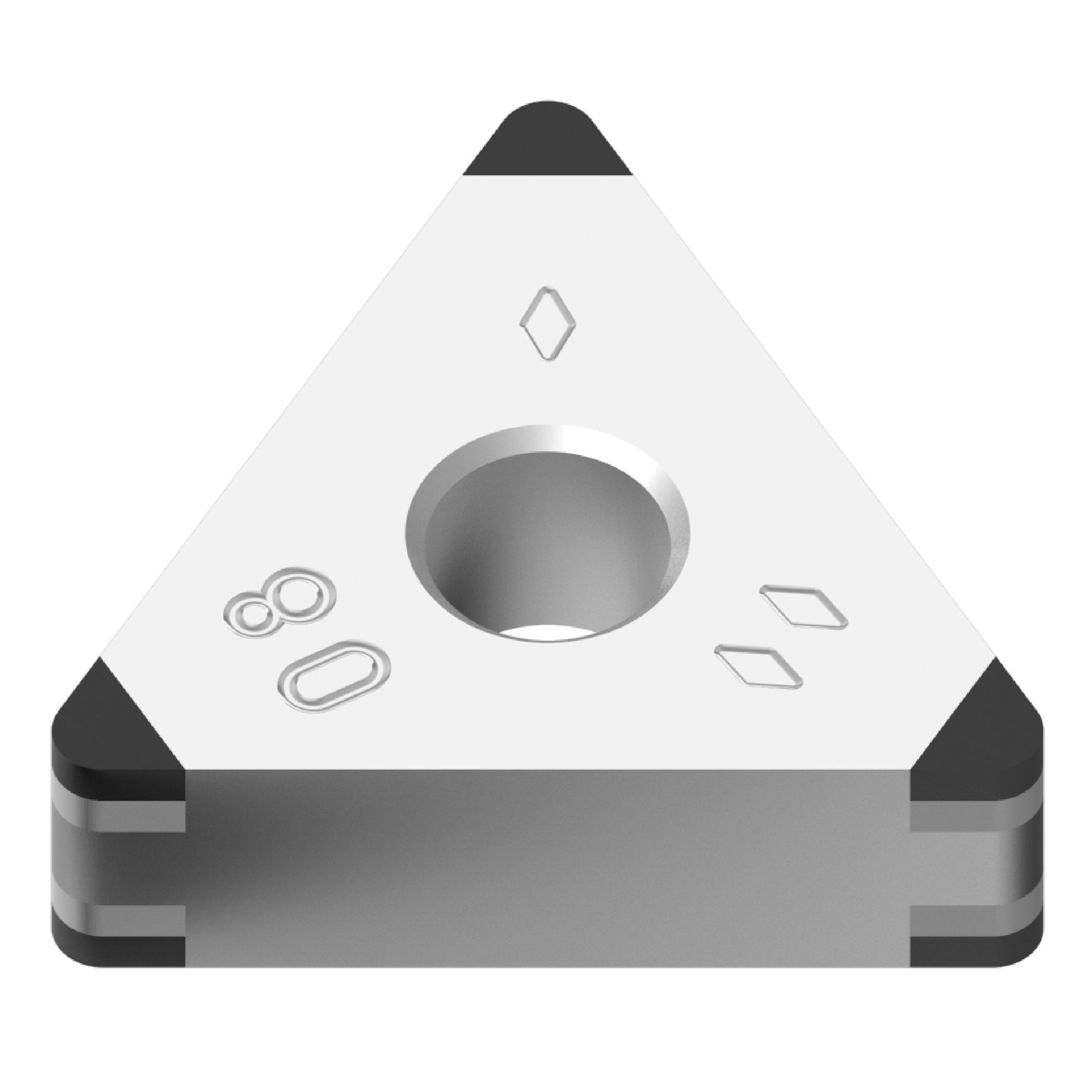

NP-TNGA332-TA6 MB8120 CBN INSERT
NP-TNGA332-TA6 MB8120 CBN INSERT
MIT10599594
10599594
226.12
/ EA
http://schema.org/OutOfStock
/Product/MIT10599594
- Chipbreaker: Flat Top
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.15 in
- Included Angle: 60 deg
- Inscribed Circle: 9.525 mm
- Insert Style: TNGA
- ISO Code: NP-TNGA160408TA6 MB8120
- Material: CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Triangle
- Thickness: 4.76 mm
- Type: 6-Corner
- ANSI Code: NP-TNGA332-TA6 MB8120
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8120
- Application
For Interrupted Machining
